# Wireloom for Obsidian（中文）

> 在 Obsidian 中把文本直接渲染成 UI 线框图 —— 一键可视化 AI 生成的界面原型。

---

## 目录

- [简介](#简介)
- [快速预览效果](#快速预览效果)
- [设计目标](#设计目标)
- [功能特性](#功能特性)
- [系统要求](#系统要求)
- [构建](#构建)
- [安装](#安装)
- [使用](#使用)
- [配置](#配置)
- [故障排查](#故障排查)
- [技术架构](#技术架构)
- [资源](#资源)
- [许可证](#许可证)

---

## 简介

**Wireloom for Obsidian** 是一个 Obsidian 社区插件，它将 [Wireloom](https://github.com/stardock/wireloom) —— 一种专为 AI 智能体设计的文本线框图语言 —— 无缝集成到 Obsidian 的 Markdown 渲染管线中。

在你的 Obsidian 笔记中写一个 ` ```wireloom ` 代码块，插件就会自动将其渲染为自包含的 SVG 线框图。无需切换工具、无需粘贴截图、无需维护外部文件 —— 线框图与文档同源，真正做到「文档即设计」。

### 为什么做这个插件？

在 AI 时代，LLM 可以直接从自然语言描述生成 Wireloom 代码。这意味着：

- **产品经理**可以让 AI 根据 PRD 生成界面线框图，并直接嵌入需求文档
- **开发者**可以在技术文档中维护实时更新的系统界面原型
- **设计师**可以以文本形式快速迭代低保真概念，并与团队分享
- **AI 工作流**可以将「自然语言 → Wireloom → SVG」嵌入自动化文档生成管线

---

## 快速预览效果

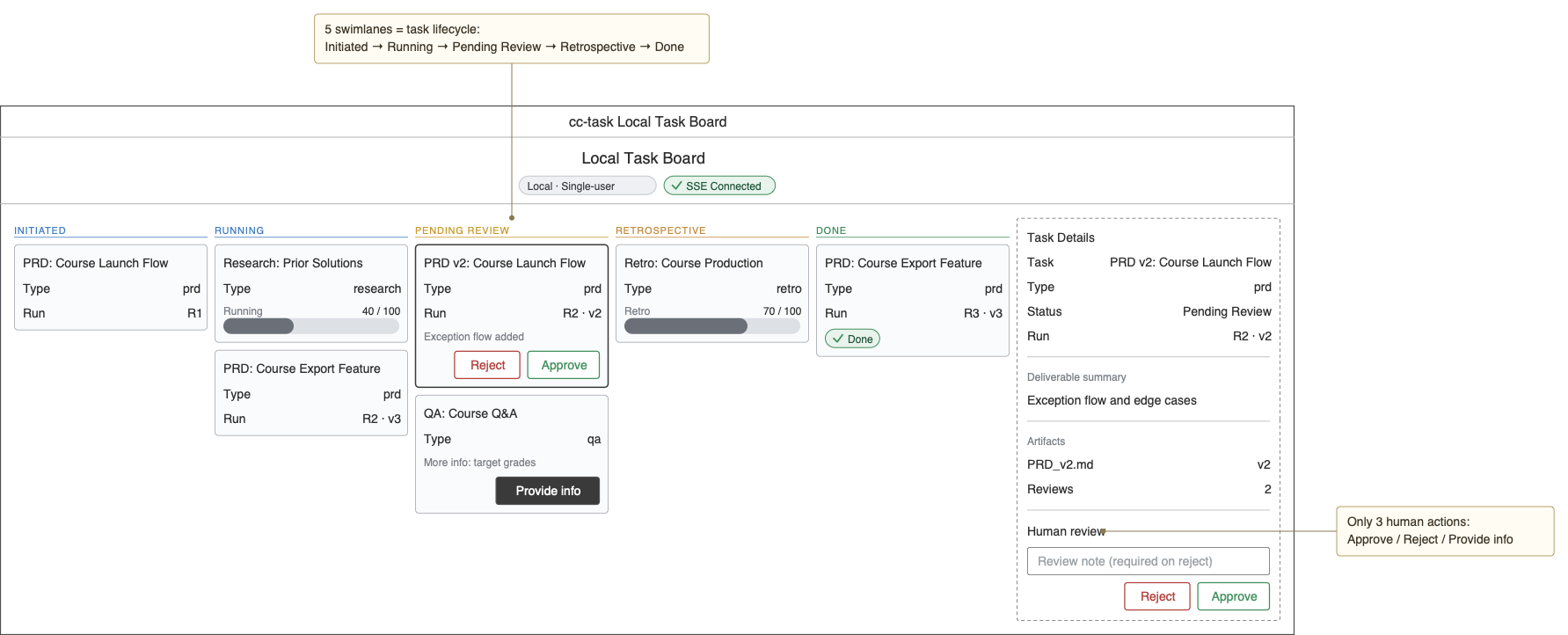

下面是一个用 Wireloom 勾勒的本地任务看板（cc-task）示例：

![A quick preview - 任务看板线框图](assets/agent-task-board.png)

五个以渐进色区分的泳道区域（`section`）承载任务卡片（`slot`），卡片内是右对齐的键值对（`kv`）标签/值行，并可挂上进度条（`progress`）、状态胶囊（`status`）和页脚操作按钮（`footer`）。页头用徽标（`chip`）与状态胶囊（`status`）标识连接状态，右侧再用一个固定宽度的面板（`panel`）装任务详情。在此基础上叠加分隔线（`divider`）、输入框（`input`）与带引线的标注（`annotation`）等元素，就能勾勒出一个完整的任务看板应用界面。

## 设计目标

本项目遵循以下核心设计原则：


| 原则                 | 描述                                       |
| ------------------ | ---------------------------------------- |
| **AI 原生**          | 插件架构允许 LLM 直接生成和修改线框图代码，无需手动 GUI 操作      |
| **文本优先**           | 所有线框图信息以纯文本存储，原生支持 Git 版本控制和差异审查         |
| **零运行时依赖**         | 渲染出的 SVG 完全自包含 —— 无外部字体、脚本或网络请求          |
| **原生 Obsidian 体验** | 与 Obsidian 的主题系统、设置面板和 Markdown 渲染管线深度集成 |
| **懒加载性能**          | Wireloom 引擎按需加载，不影响 Obsidian 启动时间        |
| **错误友好**           | 语法错误精确定位到行列，并给出智能修正提示                    |


---



## 功能特性

- ✅ **Markdown 代码块渲染**：自动识别 ` ```wireloom ` 围栏代码块并渲染为 SVG
- ✅ **主题自适应**：支持浅色/深色主题，可自动跟随 Obsidian 当前主题
- ✅ **标注**：支持 `annotation` 节点，沿 SVG 边缘绘制引导线标注
- ✅ **精确定位错误**：解析失败时显示行号、列号和可读的错误信息
- ✅ **设置面板**：在 Obsidian 设置中配置主题模式和最大显示宽度
- ✅ **安全输出**：Wireloom 生成的 SVG 无脚本、无外部引用，可安全注入 DOM
- ✅ **跨平台**：兼容 Windows、macOS、Linux 和 Obsidian 移动端
- ✅ **SSR 友好**：支持构建时预渲染，适用于静态站点生成

---



## 系统要求


| 项目       | 最低版本     | 说明                                          |
| -------- | -------- | ------------------------------------------- |
| Obsidian | v0.15.0+ | 需要 `registerMarkdownCodeBlockProcessor` API |
| Node.js  | v18.0+   | 仅构建时需要                                      |
| npm      | v8.0+    | 仅构建时需要                                      |
| Wireloom | v0.4.1+  | 运行时依赖，通过 npm 安装                             |


---



## 构建



### 1. 获取源码

```bash
cd /path/to/your/vault/.obsidian/plugins/
git clone https://github.com/weakingwang/Wireloom-for-Obsidian.git wireloom
cd wireloom
```

或下载本项目的 ZIP 压缩包并解压到 `wireloom` 目录。

### 2. 安装依赖

```bash
npm install
```

> 如果安装缓慢，可以使用镜像源：
>
> ```bash
> npm install --registry=https://registry.npmmirror.com
> ```



### 3. 运行构建

**生产构建**（推荐）：

```bash
npm run build
```

构建成功后，目录中会生成一个 `main.js` 文件（约 120KB+，包含 Wireloom 引擎）。

**开发构建**（带文件监听，源码变更时自动重新构建）：

```bash
npm run dev
```



### 4. 验证构建产物

```bash
ls -la main.js manifest.json styles.css
```

确认这三个文件都存在，且 `main.js` 大于 50KB（这表示 Wireloom 引擎已正确打包）。

---



## 安装



### 方式一：手动安装（推荐）

1. 按照上述步骤完成构建，确保生成了 `main.js`、`manifest.json` 和 `styles.css`
2. 将这三个文件复制到 Obsidian 库的插件目录：
   ```
   .obsidian/plugins/wireloom/
   ├── main.js
   ├── manifest.json
   └── styles.css
   ```
3. 重启 Obsidian
4. 前往 **设置 → 第三方插件 → 已安装插件**
5. 找到 **Wireloom**，打开右侧开关启用它
6. （首次启用时，可能需要关闭并重新打开安全模式确认框）



### 方式二：BRAT 安装（测试版）

如果你使用 [BRAT](https://github.com/TfTHacker/obsidian42-brat) 插件来管理测试版插件：

1. 安装并启用 BRAT 插件
2. 打开命令面板，运行 **BRAT: Add a beta plugin for testing**
3. 输入本项目的 GitHub 仓库地址
4. BRAT 会自动下载最新构建并安装



### 方式三：Obsidian 社区插件市场

本项目通过 Obsidian 社区插件审核后，你可以在 **设置 → 第三方插件 → 浏览** 中搜索 "Wireloom" 一键安装。

---



## 使用



### 基本语法

在 Obsidian 笔记中插入一个 ` ```wireloom ` 代码块：

````markdown
## 登录页线框图

```wireloom
window "User Login":
  header:
    text "Welcome back" bold id="title"
  panel:
    input placeholder="Enter email" id="email"
    input placeholder="Enter password" type=password id="password"
    row:
      checkbox "Remember me" id="remember"
      text "Forgot password?" id="forgot"
    button "Sign in" primary id="submit"
  footer:
    text "No account? Sign up"

annotation "Page title" target="title" position=top
annotation "Primary action button" target="submit" position=right
```
````

切换到 **预览模式** 或 **阅读模式** 即可看到渲染出的 SVG 线框图。

### 支持的组件


| 分类  | 组件                                                                                              |
| --- | ----------------------------------------------------------------------------------------------- |
| 容器  | `window`、`header`、`footer`、`panel`、`section`、`tabs`、`row`、`col`、`list`、`grid`、`navbar`、`tabbar` |
| 输入  | `input`、`combo`、`slider`、`checkbox`、`radio`、`toggle`                                            |
| 按钮  | `button`                                                                                        |
| 内容  | `text`、`kv`、`image`、`icon`、`chip`、`avatar`、`spinner`                                            |
| 其他  | `tree`、`breadcrumb`、`divider`                                                                   |
| 标注  | `annotation`                                                                                    |




### 完整语法参考

请参阅 Wireloom 官方文档：[design/grammar.md](https://github.com/stardock/wireloom/blob/main/design/grammar.md)

---



## 配置

在 **Obsidian 设置 → 第三方插件 → Wireloom** 下，可以配置以下选项：


| 设置项      | 可选值          | 默认值  | 说明                       |
| -------- | ------------ | ---- | ------------------------ |
| **渲染主题** | 自动 / 浅色 / 深色 | 自动   | "自动" 会实时跟随 Obsidian 当前主题 |
| **最大宽度** | 任意 CSS 宽度值   | 100% | 控制 SVG 在预览中的最大显示宽度       |




### 主题切换行为

- 当 Obsidian 从浅色主题切换到深色主题时，插件会检测 `body.theme-dark` 类变化
- 受 Obsidian 限制，已渲染的线框图不会自动刷新；插件会提示建议重新打开文件或切换编辑/预览模式
- 新打开的文件会自动应用当前主题

---



## 故障排查



### 插件显示但启动失败，报错 `ENOENT: main.js`

**原因**：缺少构建产物。ZIP 源码包不包含 `main.js`，需要先运行 `npm run build`。

**解决方案**：

```bash
cd .obsidian/plugins/wireloom
npm install
npm run build
```



### 构建报错 `Cannot find package 'builtin-modules'`

**原因**：`esbuild.config.mjs` 依赖 `builtin-modules` 包，但它未在 `package.json` 中声明。

**解决方案**：

```bash
npm install builtin-modules
npm run build
```



### 代码块渲染为纯文本，而不是线框图

**原因**：你当前处于 **编辑模式**，或处于 **实时预览（Live Preview）** 的编辑状态。

**解决方案**：切换到 **阅读模式** 或 **预览模式**。Obsidian 的 `registerMarkdownCodeBlockProcessor` 只在非编辑状态生效。



### 报错 "Wireloom engine failed to load"

**原因**：`wireloom` npm 包未正确安装，或在构建时未打包进 `main.js`。

**解决方案**：

1. 确认 `node_modules/wireloom` 存在
2. 重新运行 `npm install && npm run build`
3. 检查 `main.js` 文件大小是否大于 50KB



### 中文文本渲染不正确或显示乱码

**原因**：Wireloom 使用内联 SVG 渲染，默认字体依赖系统字体栈。

**解决方案**：在 Obsidian 自定义 CSS 中为 `.wireloom-block svg` 添加 `font-family` 覆盖，或确保系统安装了支持中文的字体。



### 部分组件或语法无法正常渲染

**原因**：插件依赖 Wireloom 的 JS 库（`package.json` 中的 `wireloom` 依赖），而 JS 库版本可能落后于 Wireloom 协议本身，导致某些较新的组件或语法在生成 UI 文本时无法正常显示。

**解决方案**：当 Wireloom JS 库有更新时，及时更新 `package.json` 中的 `wireloom` 依赖版本，然后重新运行 `npm install && npm run build`。

---



## 技术架构

```
┌─────────────────────────────────────────────────────────────┐
│                     Obsidian editor                         │
│  ┌─────────────┐    ┌─────────────┐    ┌─────────────────┐  │
│  │ Markdown    │───→│ Wireloom    │───→│ SVG wireframe   │  │
│  │ source      │    │ code block  │    │ (self-contained,│  │
│  │             │    │ processor   │    │  no scripts)    │  │
│  └─────────────┘    └──────┬──────┘    └─────────────────┘  │
│                            │                                │
│                     ┌──────┴──────┐                         │
│                     │ Lazy-loaded │                         │
│                     │ engine      │                         │
│                     │ wireloom    │                         │
│                     │ (ESM/CJS)   │                         │
│                     └─────────────┘                         │
└─────────────────────────────────────────────────────────────┘
```



### 关键设计决策


| 决策               | 理由                                                         |
| ---------------- | ---------------------------------------------------------- |
| **懒加载**          | `import("wireloom")` 延迟到遇到第一个代码块时才执行，避免拖慢 Obsidian 启动      |
| **动态 import 桥接** | Wireloom 是 ESM 包，而 Obsidian 插件是 CJS；`await import()` 提供兼容性 |
| **innerHTML 注入** | Wireloom 官方保证返回的 SVG 无 `<script>` 且无外部引用，因此可以直接安全注入        |
| **防抖刷新**         | 主题变化时 300ms 防抖，避免频繁重新渲染                                    |
| **错误降级**         | 引擎加载失败或语法错误时显示友好提示，不会阻塞整个文档渲染                              |


---



## 资源

- **Wireloom 官方仓库**：[https://github.com/stardock/wireloom](https://github.com/stardock/wireloom)
- **Wireloom 在线编辑器**：[https://wireloom.dev](https://wireloom.dev) （如果可用）
- **Obsidian 插件开发文档**：[https://docs.obsidian.md/Plugins/Getting+started](https://docs.obsidian.md/Plugins/Getting+started)
- **Mermaid**（类似的文本图表工具）：[https://mermaid.js.org](https://mermaid.js.org)
- **json-render**（用于 AI 生成真实 UI 的框架）：[https://github.com/vercel-labs/json-render](https://github.com/vercel-labs/json-render)

---



## 许可证

本项目基于 [MIT License](LICENSE) 开源，完整条款见仓库根目录的 [LICENSE](LICENSE) 文件。

---

> **注意**：本项目由社区驱动，并非 Wireloom 官方产品。Wireloom 商标及核心引擎版权归 Stardock 所有。

---

[↑ 简体中文](#中文) · [↑ English](#english)

---



<a id="english"></a>

# Wireloom for Obsidian

> Render text directly into UI wireframes inside Obsidian — visualize AI-generated interface prototypes in one click.

---



## Table of Contents

- [Introduction](#introduction)
- [A quick preview](#a-quick-preview)
- [Design Goals](#design-goals)
- [Features](#features)
- [System Requirements](#system-requirements)
- [Build](#build)
- [Installation](#installation)
- [Usage](#usage)
- [Configuration](#configuration)
- [Troubleshooting](#troubleshooting)
- [Technical Architecture](#technical-architecture)
- [Resources](#resources)
- [License](#license)

---



## Introduction

**Wireloom for Obsidian** is an Obsidian community plugin that seamlessly integrates [Wireloom](https://github.com/stardock/wireloom) — a text-based wireframe language designed for AI agents — into Obsidian's Markdown rendering pipeline.

Write a ` ```wireloom ` code block in your Obsidian note, and the plugin automatically renders it as a self-contained SVG wireframe. No tool switching, no screenshot pasting, no external file maintenance — the wireframe lives in the same source as the document, achieving true "document as design".

### Why this plugin?

In the age of AI, LLMs can generate Wireloom code directly from natural-language descriptions. This means:

- **Product managers** can have AI generate interface wireframes from a PRD and embed them directly into requirement documents
- **Developers** can maintain live, up-to-date system interface prototypes within technical documentation
- **Designers** can rapidly iterate low-fidelity concepts as text and share them with the team
- **AI workflows** can embed "natural language → Wireloom → SVG" into automated documentation generation pipelines

---

## A quick preview

Here is a local task board (cc-task) sketched with Wireloom:

![A quick preview - task board wireframe](assets/agent-task-board.png)

Five color-graded swimlane `section`s hold task-card `slot`s, each carrying right-aligned `kv` label/value rows plus optional `progress` bars, `status` pills, and a `footer` of action buttons. A header marks connection state with a `chip` and a `status` pill, while a fixed-width `panel` on the right holds the task details. Layer `divider`s, an `input`, and leader-lined `annotation`s on top, and you can sketch a complete task-board application screen.

## Design Goals

This project follows these core design principles:


| Principle                      | Description                                                                                                    |
| ------------------------------ | -------------------------------------------------------------------------------------------------------------- |
| **AI-native**                  | The plugin architecture lets LLMs generate and modify wireframe code directly, without manual GUI interaction  |
| **Text-first**                 | All wireframe information is stored as plain text, with native support for Git version control and diff review |
| **Zero runtime dependencies**  | Rendered SVGs are self-contained — no external fonts, scripts, or network requests                             |
| **Native Obsidian experience** | Deeply integrated with Obsidian's theme system, settings panel, and Markdown rendering pipeline                |
| **Lazy-loading performance**   | The Wireloom engine loads on demand, without affecting Obsidian's startup time                                 |
| **Error-friendly**             | Syntax errors pinpoint exact line and column, with smart correction hints                                      |


---



## Features

- ✅ **Markdown code block rendering**: automatically recognizes ` ```wireloom ` fenced code blocks and renders them as SVG
- ✅ **Theme adaptive**: supports light/dark themes and can follow Obsidian's current theme automatically
- ✅ **Annotations**: supports the `annotation` node, drawing leader-line callout labels along the SVG edges
- ✅ **Precise error location**: shows line number, column number, and a human-readable error message on parse failure
- ✅ **Settings panel**: configure theme mode and maximum display width in Obsidian settings
- ✅ **Safe output**: Wireloom-generated SVG has no scripts and no external references, and can be safely injected into the DOM
- ✅ **Cross-platform**: compatible with Windows, macOS, Linux, and Obsidian mobile
- ✅ **SSR-friendly**: supports pre-rendering at build time, suitable for static site generation

---



## System Requirements


| Item     | Minimum version | Notes                                                 |
| -------- | --------------- | ----------------------------------------------------- |
| Obsidian | v0.15.0+        | Requires the `registerMarkdownCodeBlockProcessor` API |
| Node.js  | v18.0+          | Build-time only                                       |
| npm      | v8.0+           | Build-time only                                       |
| Wireloom | v0.4.1+         | Runtime dependency, installed via npm                 |


---



## Build



### 1. Get the source code

```bash
cd /path/to/your/vault/.obsidian/plugins/
git clone https://github.com/weakingwang/Wireloom-for-Obsidian.git wireloom
cd wireloom
```

Or download this project's ZIP archive and extract it into the `wireloom` directory.

### 2. Install dependencies

```bash
npm install
```

> If installation is slow, you can use a mirror registry:
>
> ```bash
> npm install --registry=https://registry.npmmirror.com
> ```



### 3. Run the build

**Production build** (recommended):

```bash
npm run build
```

After a successful build, a `main.js` file (about 120KB+, including the Wireloom engine) is generated in the directory.

**Development build** (with file watching, auto-rebuilds on source changes):

```bash
npm run dev
```



### 4. Verify the build artifacts

```bash
ls -la main.js manifest.json styles.css
```

Confirm that all three files exist and that `main.js` is larger than 50KB (which indicates the Wireloom engine was bundled correctly).

---



## Installation



### Method 1: Manual install (recommended)

1. Complete the build following the steps above, ensuring `main.js`, `manifest.json`, and `styles.css` are generated
2. Copy these three files into your Obsidian Vault's plugin directory:
   ```
   .obsidian/plugins/wireloom/
   ├── main.js
   ├── manifest.json
   └── styles.css
   ```
3. Restart Obsidian
4. Go to **Settings → Community plugins → Installed plugins**
5. Find **Wireloom** and toggle the switch on the right to enable it
6. (On first enable, you may need to close and reopen the safe-mode confirmation)



### Method 2: BRAT install (beta)

If you use the [BRAT](https://github.com/TfTHacker/obsidian42-brat) plugin to manage beta plugins:

1. Install and enable the BRAT plugin
2. Open the command palette and run **BRAT: Add a beta plugin for testing**
3. Enter this project's GitHub repository URL
4. BRAT automatically downloads the latest build and installs it



### Method 3: Obsidian community plugin marketplace

Once this project passes Obsidian community plugin review, you can search for "Wireloom" in **Settings → Community plugins → Browse** and install it in one click.

---



## Usage



### Basic syntax

Insert a ` ```wireloom ` code block into an Obsidian note:

````markdown
## Login page wireframe

```wireloom
window "User Login":
  header:
    text "Welcome back" bold id="title"
  panel:
    input placeholder="Enter email" id="email"
    input placeholder="Enter password" type=password id="password"
    row:
      checkbox "Remember me" id="remember"
      text "Forgot password?" id="forgot"
    button "Sign in" primary id="submit"
  footer:
    text "No account? Sign up"

annotation "Page title" target="title" position=top
annotation "Primary action button" target="submit" position=right
```
````

Switch to **Preview mode** or **Reading mode** to see the rendered SVG wireframe.

### Supported components


| Category    | Components                                                                                                 |
| ----------- | ---------------------------------------------------------------------------------------------------------- |
| Containers  | `window`, `header`, `footer`, `panel`, `section`, `tabs`, `row`, `col`, `list`, `grid`, `navbar`, `tabbar` |
| Inputs      | `input`, `combo`, `slider`, `checkbox`, `radio`, `toggle`                                                  |
| Buttons     | `button`                                                                                                   |
| Content     | `text`, `kv`, `image`, `icon`, `chip`, `avatar`, `spinner`                                                 |
| Other       | `tree`, `breadcrumb`, `divider`                                                                            |
| Annotations | `annotation`                                                                                               |




### Full grammar reference

See the official Wireloom documentation: [design/grammar.md](https://github.com/stardock/wireloom/blob/main/design/grammar.md)

---



## Configuration

Under **Obsidian Settings → Community plugins → Wireloom**, you can configure the following options:


| Setting          | Options             | Default | Description                                              |
| ---------------- | ------------------- | ------- | -------------------------------------------------------- |
| **Render theme** | Auto / Light / Dark | Auto    | "Auto" follows Obsidian's current theme in real time     |
| **Max width**    | Any CSS width value | 100%    | Controls the maximum display width of the SVG in preview |




### Theme switching behavior

- When Obsidian switches from a light to a dark theme, the plugin detects the `body.theme-dark` class change
- Due to Obsidian's limitations, already-rendered wireframes are not automatically refreshed; the plugin shows a prompt suggesting reopening the file or toggling edit/preview mode
- Newly opened files automatically apply the current theme

---



## Troubleshooting



### Plugin shows but fails to start, with error `ENOENT: main.js`

**Cause**: missing build artifacts. The ZIP source package does not include `main.js`; you must run `npm run build` first.

**Solution**:

```bash
cd .obsidian/plugins/wireloom
npm install
npm run build
```



### Build error `Cannot find package 'builtin-modules'`

**Cause**: `esbuild.config.mjs` depends on the `builtin-modules` package, but it is not declared in `package.json`.

**Solution**:

```bash
npm install builtin-modules
npm run build
```



### Code block renders as plain text, not a wireframe

**Cause**: you are currently in **Edit Mode**, or in the editing state of **Live Preview**.

**Solution**: switch to **Reading Mode** or **Preview Mode**. Obsidian's `registerMarkdownCodeBlockProcessor` only takes effect outside editing state.

### Error "Wireloom engine failed to load"

**Cause**: the `wireloom` npm package is not installed correctly, or was not bundled into `main.js` at build time.

**Solution**:

1. Confirm that `node_modules/wireloom` exists
2. Re-run `npm install && npm run build`
3. Check that the `main.js` file size is greater than 50KB



### Chinese text renders incorrectly or shows garbled characters

**Cause**: Wireloom renders using inline SVG, and the default font relies on the system font stack.

**Solution**: add a `font-family` override for `.wireloom-block svg` in Obsidian's custom CSS, or ensure a font that supports Chinese is installed on the system.

### Some components or syntax fail to render

**Cause**: the plugin relies on the Wireloom JS library (the `wireloom` dependency in `package.json`), and the JS library version may lag behind the Wireloom protocol itself, so some newer components or syntax may not display correctly when generating UI text.

**Solution**: when the Wireloom JS library has an update, update the `wireloom` dependency version in `package.json`, then re-run `npm install && npm run build`.

---



## Technical Architecture

```
┌─────────────────────────────────────────────────────────────┐
│                     Obsidian editor                         │
│  ┌─────────────┐    ┌─────────────┐    ┌─────────────────┐  │
│  │ Markdown    │───→│ Wireloom    │───→│ SVG wireframe   │  │
│  │ source      │    │ code block  │    │ (self-contained,│  │
│  │             │    │ processor   │    │  no scripts)    │  │
│  └─────────────┘    └──────┬──────┘    └─────────────────┘  │
│                            │                                │
│                     ┌──────┴──────┐                         │
│                     │ Lazy-loaded │                         │
│                     │ engine      │                         │
│                     │ wireloom    │                         │
│                     │ (ESM/CJS)   │                         │
│                     └─────────────┘                         │
└─────────────────────────────────────────────────────────────┘
```



### Key design decisions


| Decision                    | Rationale                                                                                                                           |
| --------------------------- | ----------------------------------------------------------------------------------------------------------------------------------- |
| **Lazy loading**            | `import("wireloom")` is deferred until the first code block is encountered, avoiding slowdown of Obsidian startup                   |
| **Dynamic import bridging** | Wireloom is an ESM package while Obsidian plugins are CJS; `await import()` provides compatibility                                  |
| **innerHTML injection**     | Wireloom officially guarantees the returned SVG has no `<script>` and no external references, so it can be safely injected directly |
| **Debounced refresh**       | A 300ms debounce on theme changes avoids frequent re-rendering                                                                      |
| **Error degradation**       | Engine load failure or syntax errors show a friendly message without blocking the whole document from rendering                     |


---



## Resources

- **Wireloom official repository**: [https://github.com/stardock/wireloom](https://github.com/stardock/wireloom)
- **Wireloom online editor**: [https://wireloom.dev](https://wireloom.dev) (if available)
- **Obsidian plugin development docs**: [https://docs.obsidian.md/Plugins/Getting+started](https://docs.obsidian.md/Plugins/Getting+started)
- **Mermaid** (similar text-based diagramming tool): [https://mermaid.js.org](https://mermaid.js.org)
- **json-render** (framework for AI-generated real UI): [https://github.com/vercel-labs/json-render](https://github.com/vercel-labs/json-render)

---



## License

This project is open source under the [MIT License](LICENSE). See the [LICENSE](LICENSE) file in the repository root for the full terms.

---

> **Note**: This project is community-driven and not an official Wireloom product. The Wireloom trademark and core engine are copyright of Stardock.

---

[↑ 简体中文](#中文) · [↑ English](#english)
