# Syncher
**Live two-way sync of your Obsidian vault with a folder on your own server — over plain SSH.**
No cloud, no subscription, no third party: just your notes, your devices and your server.
[](https://github.com/tequrity/syncher/releases/latest)
[](https://github.com/tequrity/syncher/releases)
[](LICENSE)
[](https://obsidian.md)
[](#-installation)
[](#-security)
[Features](#-features) ·
[Screenshots](#-screenshots) ·
[How it works](#-how-it-works) ·
[Quick start](#-quick-start) ·
[Server setup](#%EF%B8%8F-step-1--prepare-the-server) ·
[Installation](#-installation) ·
[Settings](#-settings-reference) ·
[Disclosures](#-disclosures) ·
[Troubleshooting](#-troubleshooting) ·
[FAQ](#-faq)
---
## ✨ Features
- 🔄 **Live sync** — every change (even a single space) reaches the server a moment after you stop typing;
your other open devices receive it within seconds.
- 💾 **Local _and_ remote copies** — work offline as long as you like, everything catches up on reconnect.
- 🔐 **Your own server, plain SSH/SFTP** — any Linux box, NAS, VPS or Raspberry Pi with OpenSSH will do.
- 📱 **Windows, Linux and Android** — the same plugin on every device.
- 🗑️ **Mirror deletions**, with a pop-up _"Device X deleted file Y"_ when another online device deletes something.
- ✍️ **Last writer wins** when two devices edit the same note; different notes can be edited at the same time.
- 🚚 **Renames and moves** are applied as renames (nothing is downloaded again).
- 🛡️ **Permanent save** — a per-device switch: "never delete anything here".
- 🧯 **Safety nets** — asks before a sync would delete many files, never lets one broken file stop the rest,
pins the server key like `ssh` does, encrypts stored passwords and keys.
## 📸 Screenshots
## 🧭 How it works
```
[ laptop ] ──┐
├── SSH/SFTP ──► [ your server: /path/to/vault ] ◄── SSH (through a small relay) ── [ phone ]
[ desktop ] ─┘
```
1. Every device keeps a small, private "hash base" (`.obsidian/plugins/syncher/state.json`) that remembers what
each file looked like at the last sync. Comparing _then_ with _now_ on both sides tells exactly who changed what.
2. A changed file is uploaded right away and a line is added to a change journal on the server. Other online
devices read that journal every few seconds and fetch only what changed.
3. When a device connects (and every 15 minutes, as a safety net) it does a full comparison of both sides.
Hidden files and folders (names starting with a dot, such as `.obsidian`, `.trash`, `.git`) are **never** synced:
every device keeps its own Obsidian settings.
> [!NOTE]
> **Why a relay for phones?** Obsidian on Android does not let plugins open network connections of their own, so a
> phone cannot talk SSH directly. The plugin sends the very same encrypted SSH stream through a WebSocket to a tiny
> relay next to your SSH server, and the relay just passes the bytes on. The relay never sees your data unencrypted,
> and the plugin still checks your server's key. Computers do not need the relay at all.
## 🚀 Quick start
| # | What | Where | Time |
|---|---|---|---|
| 1 | [Prepare the server](#%EF%B8%8F-step-1--prepare-the-server): a folder, an SSH key, (for phones) the relay | server | 5 min |
| 2 | [Install the plugin](#-installation) | each device | 2 min |
| 3 | [Fill in the settings](#%EF%B8%8F-step-3--configure-the-plugin) and press **Test connection** | each device | 2 min |
That's it — from then on it syncs by itself.
---
## 🖥️ Step 1 — Prepare the server
You need a computer that is always on and runs an **SSH server** (OpenSSH). A Linux server, a NAS, a VPS or a
Raspberry Pi are all fine. You must be able to log in to it with `ssh`.
### 1.1 Create a folder for the vault
Log in to the server and create an empty folder. One folder = one vault.
```bash
mkdir -p ~/vaults/notes
```
Write down the full path, you will need it later. To see it, run `cd ~/vaults/notes && pwd`
— it prints something like `/home//vaults/notes`.
### 1.2 Create an SSH key (recommended)
A key is a file that lets the plugin log in without a password. Do this **on your computer**, not on the server.
🪟 Windows
1. Press Win, type **PowerShell**, press Enter.
2. Create the key (press Enter at every question; a passphrase is optional):
```powershell
ssh-keygen -t ed25519 -f "$env:USERPROFILE\.ssh\syncher"
```
3. Put the public half on the server (replace `` and ``; you will be asked for your server password once):
```powershell
type "$env:USERPROFILE\.ssh\syncher.pub" | ssh @ "mkdir -p ~/.ssh && cat >> ~/.ssh/authorized_keys"
```
4. Check it: `ssh -i "$env:USERPROFILE\.ssh\syncher" @` must log you in without the server password.
🐧 Linux / macOS
```bash
ssh-keygen -t ed25519 -f ~/.ssh/syncher # press Enter at every question
ssh-copy-id -i ~/.ssh/syncher.pub @
ssh -i ~/.ssh/syncher @ # must log in without the server password
```
You now have two files: `syncher` (**private** — never share it) and `syncher.pub` (public, already on the server).
> [!TIP]
> No key? The plugin can also log in with the server password, if your server allows password logins.
### 1.3 Install the relay (only if you use a phone)
Skip this if you only sync computers. On the server, from a copy of this repository:
```bash
git clone https://github.com/tequrity/syncher.git
cd syncher
sudo sh server/install-relay.sh
```
You should see `Syncher relay is running: ws://:8022 -> 127.0.0.1:22`.
The relay needs only Python 3 and systemd. If the script says a firewall is active, run the command it prints
to open port **8022** (or open it only to your home network / VPN).
Relay options, reinstall, update and removal
| Task | Command |
|---|---|
| Install (listens on 8022, forwards to the local SSH on port 22) | `sudo sh server/install-relay.sh` |
| SSH is on another port / use another relay port | `sudo sh server/install-relay.sh --port 8022 --target 127.0.0.1:2222` |
| Reinstall or update (after `git pull`, or to change options) | run the install command again |
| Remove completely (stops it, disables it, deletes its files) | `sudo sh server/install-relay.sh --uninstall` |
| Is it running? | `systemctl status syncher-relay` |
| Live log (shows each phone connecting) | `journalctl -u syncher-relay -f` |
If you opened port 8022 in a firewall, close it again after removal (for example `sudo ufw delete allow 8022/tcp`).
**Encrypted `wss://`** — recommended if the relay is reachable from the internet: start the relay with
`--cert fullchain.pem --key privkey.pem` (a certificate the phone trusts, e.g. Let's Encrypt — phones reject
self-signed ones) or put it behind Caddy/nginx with HTTPS, and enter `wss://…` as the relay address in the plugin.
An equivalent alternative to this relay is `websockify 8022 127.0.0.1:22`.
---
## 📦 Installation
Syncher is not in the Obsidian community store yet. Pick **one** of the two ways below.
### Option A — with BRAT (easiest, works on every device, updates itself)
1. Open Obsidian → **Settings** (⚙️ bottom left) → **Community plugins**.
2. If you see **Turn on community plugins**, press it.
3. Press **Browse**, search for **BRAT**, press **Install**, then **Enable**.
4. Go back to **Settings**, open **BRAT** in the left list (under _Community plugins_).
5. Press **Add beta plugin**, paste `tequrity/syncher`, press **Add plugin**.
6. In **Settings → Community plugins**, make sure the switch next to **Syncher** is on.
### Option B — by hand
1. Open the [latest release](https://github.com/tequrity/syncher/releases/latest) and download
**`main.js`**, **`manifest.json`** and **`styles.css`**.
2. Find your vault folder (the folder you opened in Obsidian) and inside it the hidden folder `.obsidian/plugins`.
Create a folder named **`syncher`** there and put the three files into it:
```
/.obsidian/plugins/syncher/main.js
/.obsidian/plugins/syncher/manifest.json
/.obsidian/plugins/syncher/styles.css
```
How to see hidden folders
- **Windows:** File Explorer → **View** → **Show** → **Hidden items**.
- **Linux:** in most file managers press Ctrl+H.
- **Android:** copy the files over USB, or use a file manager app and turn on "show hidden files" in its menu.
Vaults usually live in `Documents/` in the internal storage.
3. Restart Obsidian → **Settings → Community plugins** → **Turn on community plugins** (if asked) →
press the refresh button ⟳ next to _Installed plugins_ → switch **Syncher** on.
From source (developers)
```bash
git clone https://github.com/tequrity/syncher.git && cd syncher
npm install
npm run release # builds main.js and copies it to dist/syncher
node scripts/install.mjs ""
```
---
## ⚙️ Step 3 — Configure the plugin
Open **Settings → Syncher** (at the bottom of the left list). At the very top you see
**Syncher v…** — the installed version.

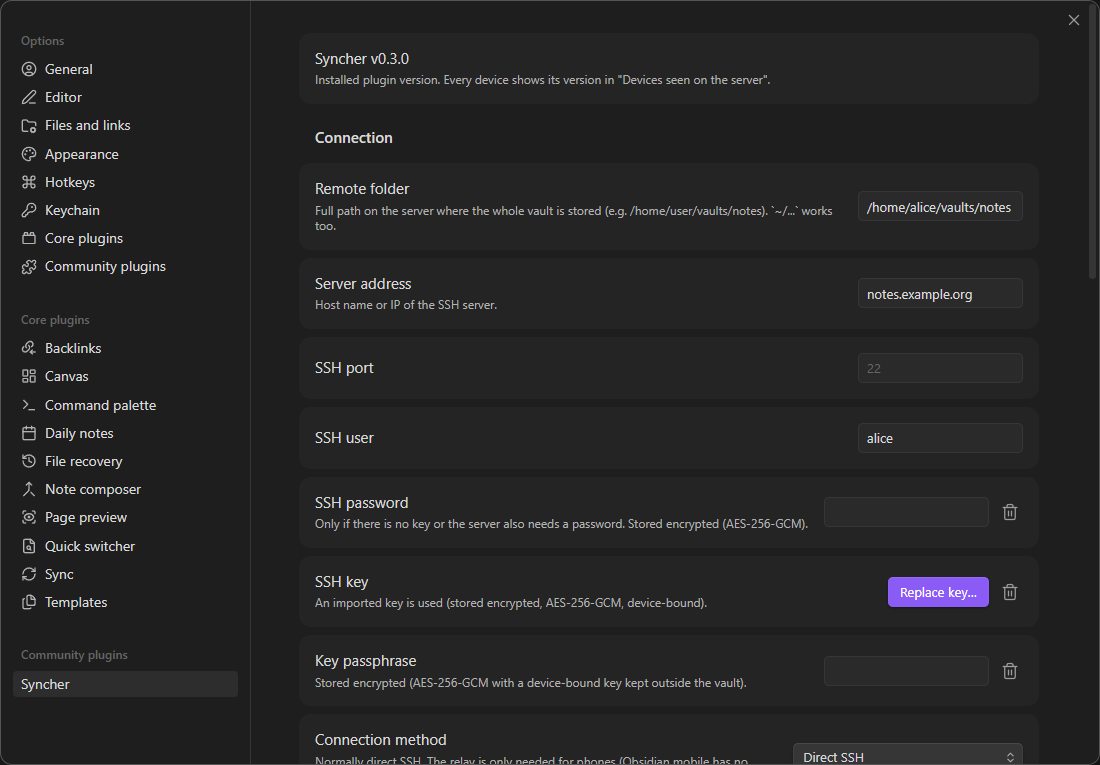

### 🪟🐧 On a computer
1. **Remote folder** — the full path from [step 1.1](#11-create-a-folder-for-the-vault), e.g. `/home//vaults/notes`.
2. **Server address** — the name or IP of your server.
3. **SSH port** — leave empty for the usual `22`.
4. **SSH user** — your login on the server.
5. **SSH key** — press **Import key…** → **Choose file…** → pick your **private** key
(`syncher`, _not_ `syncher.pub`; on Windows it is in `C:\Users\\.ssh\`) → **Save**.
The key is stored encrypted on this device; the plugin never reads files outside your vault.
_The file picker hides the `.ssh` folder? Type `%USERPROFILE%\.ssh` (Windows) or `~/.ssh` (Linux) into its
address bar, or paste the key text into the big field instead._
6. **Key passphrase** — only if you gave the key a passphrase.
7. **Connection method** — keep **Direct SSH**.
8. Press **Test connection**. You should see:
_"Connection OK: `` via `:22`, folder … is writable."_
9. Close the settings window. The status bar at the bottom shows **Syncher: syncing…** and then
**Syncher: synced**. Done!

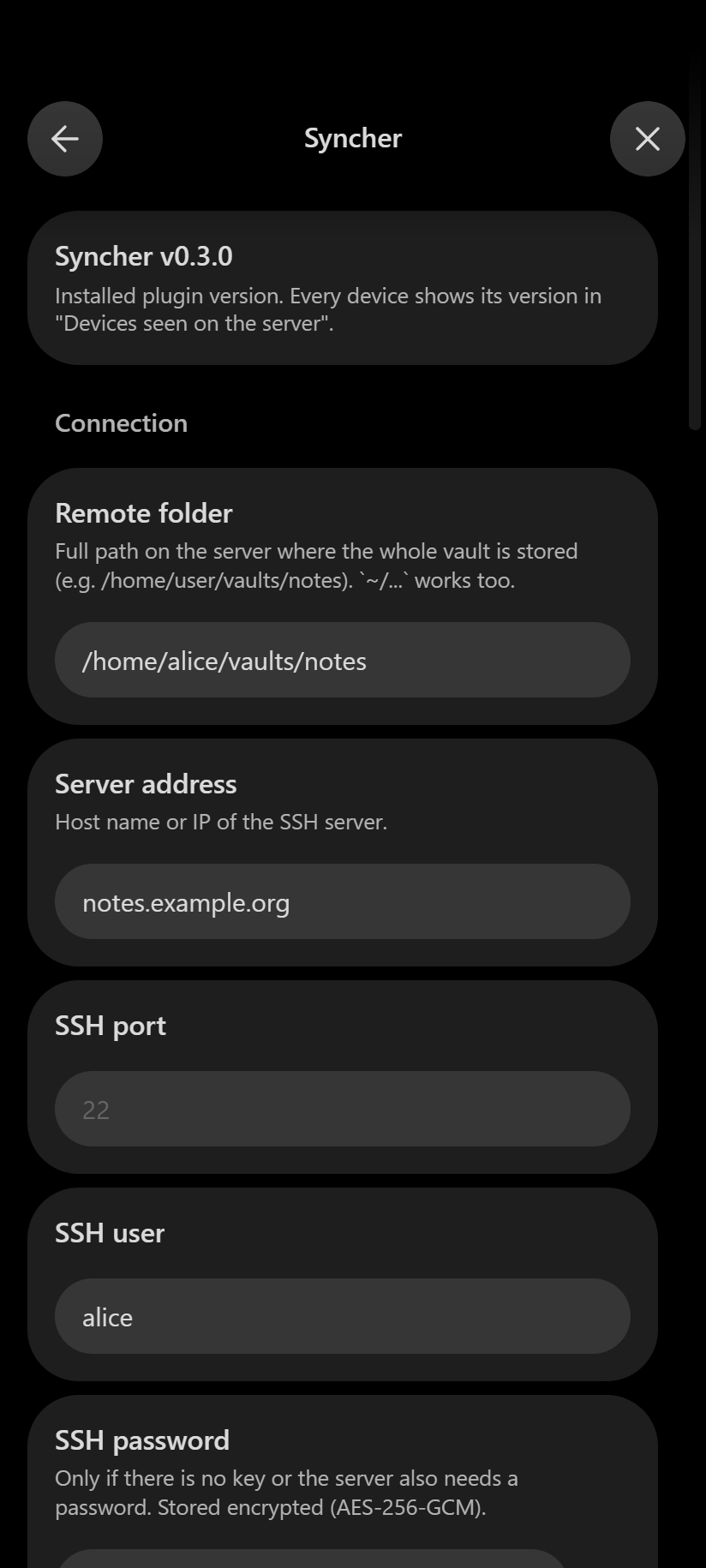

### 📱 On an Android phone
1. Copy your **private** key file (`syncher`) to the phone (USB cable, a message to yourself, a cloud drive…).
2. Fill in **Remote folder**, **Server address** and **SSH user** exactly as on the computer
(the **SSH port** is not used on the phone).

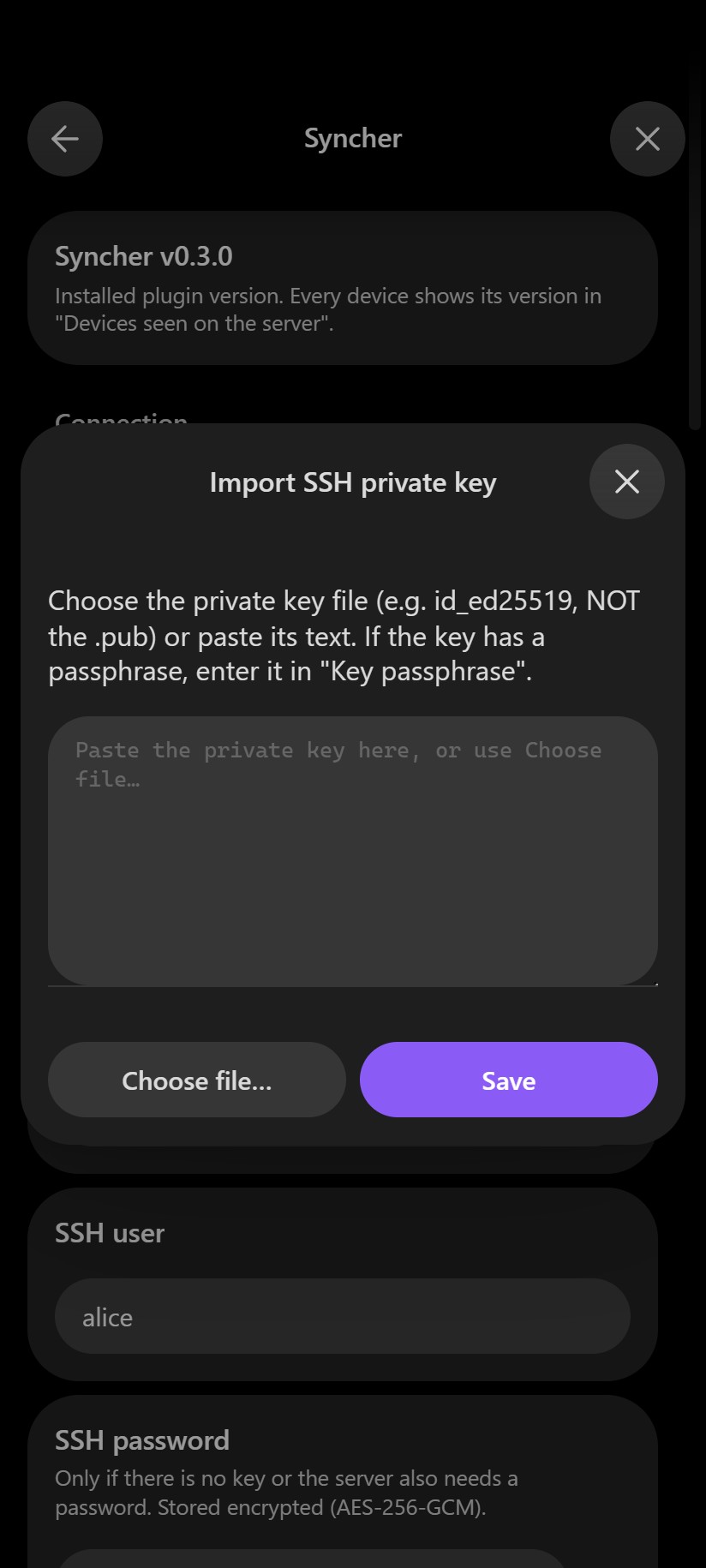

3. **SSH key** → **Import key…** → **Choose file…** → pick the key file you copied → **Save**.
The key is now stored encrypted inside Obsidian — **delete the copied key file** from the phone's storage.
_Can't find it in the picker? Open the key file on a computer in a text editor, copy all of its text, paste it
into the big field of the import window and press **Save**._
4. **Key passphrase** — only if the key has one.
5. **WebSocket relay URL** — leave it **empty** if you installed the relay with the default settings
(it then uses `ws://:8022`).
6. Press **Test connection** — you should see _"Connection OK: … via ws://…:8022, folder … is writable."_
7. Close the settings. Syncing starts on its own. The first sync of a big vault takes a few minutes; keep Obsidian open.
### ✅ Check that everything works
1. On one device create a note `Hello.md` and type something.
2. A few seconds later it appears on the other device.
3. Delete it on the other device → it disappears on the first one, which shows
_"Device … deleted file Hello.md"_.
---
## 📖 Everyday use
- Just use Obsidian. The status is shown in the status bar (computer) and in the tooltip of the ⟳ icon in the
left ribbon (phone). Hovering it also shows the plugin version.
- **Click the status bar or the ⟳ icon** to run a full sync now.
- Commands (Ctrl/Cmd+P → type _Syncher_): **Sync now (full scan)**,
**Reconnect**, **Pause / resume auto-sync**.
- Files deleted by the sync go to the trash (system trash or `.trash`, as set in
**Settings → Files and links → Deleted files**).
- If a sync is about to delete more than half of your files (for example the server folder was emptied or you
pointed the plugin at another folder), it **asks first**. Answering **No, restore them (merge)** keeps everything.
- On a phone, Android cuts the connection when Obsidian goes to the background; the plugin reconnects and catches
up as soon as you come back.
### What happens when…
| Situation | Result |
|---|---|
| You edit a note | Sent to the server a moment after you stop typing; other devices get it within seconds. |
| You create a note or folder | Appears on the server and on all devices. |
| You rename or move a note or folder | Renamed/moved everywhere (not downloaded again). |
| You delete a note or folder | Deleted on the server and on all devices — unless a device has **Permanent save** on. |

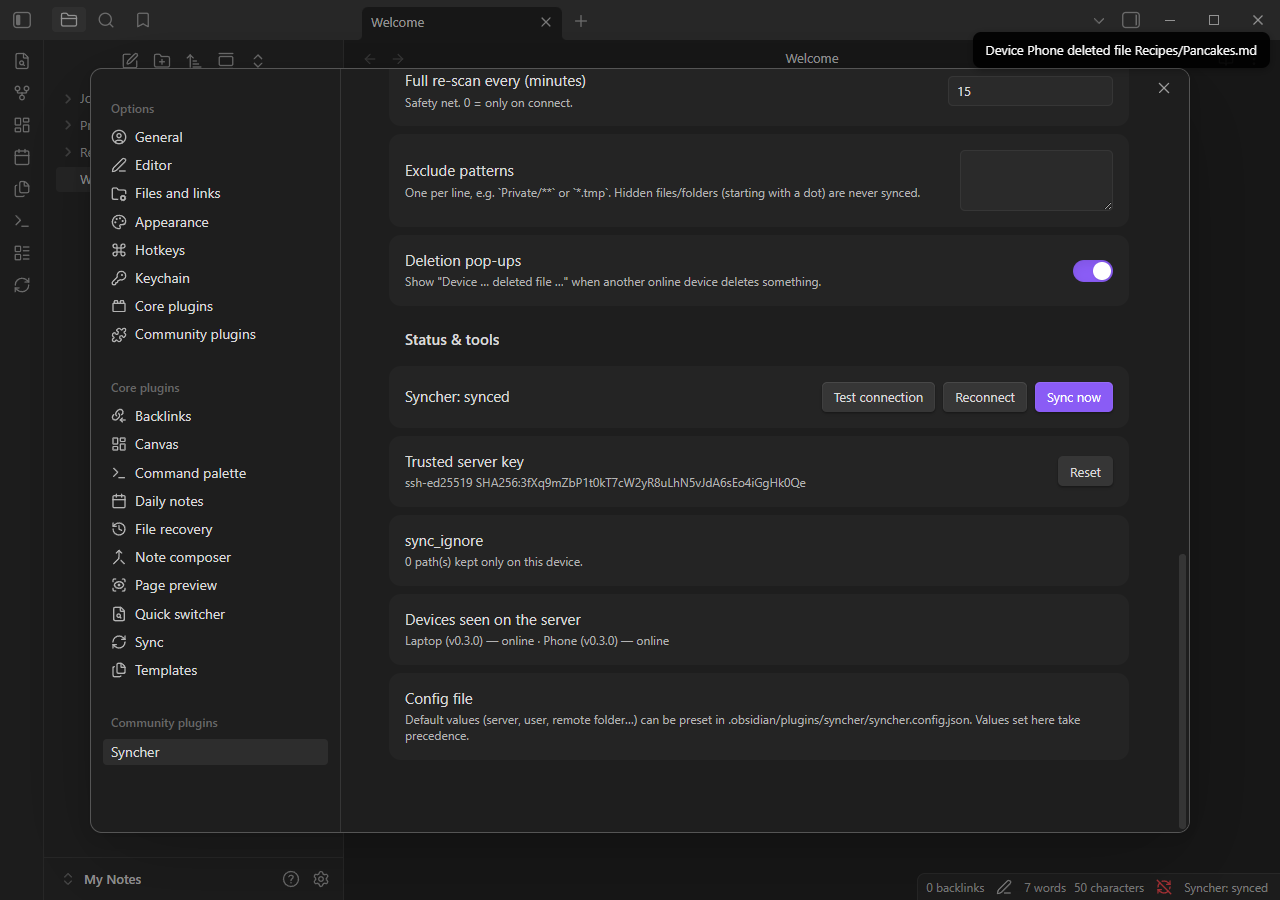

| Another online device deletes a note | Pop-up: _"Device ⟨name⟩ deleted file ⟨file⟩"_. No pop-up for changes made while you were offline. |
| Two devices edit the same note | **Last writer wins**: the later edit is kept. |
| One device edits a note another one deleted | The edit wins; the note comes back with the new content. |
| A device was offline | On reconnect both sides are compared and merged. |
| A file cannot be synced (e.g. a name Windows does not allow) | It is skipped and listed under **Not synced** in the settings; everything else keeps syncing. |
## 🛡️ Permanent save
**Permanent save** is a switch you set per device. It means: _"on this device the sync never deletes anything,
it only adds and updates."_
1. Another device deletes a file → here it **stays**. Its path goes to the `sync_ignore` list
(`.obsidian/plugins/syncher/sync_ignore.json`, also shown in the settings), so it is not uploaded again and
does not come back on the other devices.
2. A new file with the **same name** arrives from the server → the kept one is renamed
`note.md` → `note-1.old.md` (then `-2.old`, `-3.old`, …) and stays in `sync_ignore`; the new file syncs normally.
3. New and changed files from the server still arrive here.
4. **Turning it off** clears `sync_ignore`, re-reads all files and uploads everything that was kept
(including the `*.old` files) as new — so they reappear on all devices.
## 🧾 Settings reference
| Setting | What it does |
|---|---|
| **Remote folder** | Full path of the vault folder on the server (`~/…` works too). Created if missing. |
| **Server address** | Host name or IP of the SSH server. |
| **SSH port** | Default `22`. Not used on phones (they go through the relay). |
| **SSH user** | Login on the server. |
| **SSH password** | Only if there is no key or the server also asks for a password. Stored encrypted. |
| **SSH key → Import key…** | Imports your private key once (file picker or pasted text); stored encrypted on this device. |
| **Key passphrase** | If the key is protected with a passphrase. Stored encrypted. |
| **Connection method** | Computers: **Direct SSH** (normal) or **Through the relay** (to test the relay from a computer). |
| **WebSocket relay URL** | Shown when the relay is used. Empty = `ws://:8022`; or `wss://…`. |
| **Device name** | Shown to the other devices, e.g. in deletion pop-ups. Defaults to `Desktop-xxxx` / `Android-xxxx`; give it a friendly name like "Laptop". |
| **Permanent save** | See [above](#%EF%B8%8F-permanent-save). |
| **Auto-sync** | Connect on start and sync every change. |
| **Check server every (seconds)** | How often to look for changes made by other devices (default 3). |
| **Delay after typing (ms)** | How long to wait after the last keystroke before sending (default 800). |
| **Full re-scan every (minutes)** | Safety net for missed events (default 15; 0 = only on connect). |
| **Exclude patterns** | Paths not to sync, one per line, e.g. `Private/**` or `*.tmp`. |
| **Deletion pop-ups** | Turns the _"Device … deleted file …"_ pop-ups on or off. |
| **Test connection** | Checks everything a sync needs: connection, server key, login, SFTP, the remote folder and write access. |
| **Trusted server key** | The server key remembered on first connect. **Reset** only if the server was really reinstalled. |
| **Not synced** | Items that could not be synced and why (appears only when there are any). |
| **Devices seen on the server** | All devices with their plugin version and online state; ⚠ marks a device running another version. |
Config file — preset values without typing
On first start the plugin creates `.obsidian/plugins/syncher/syncher.config.json`:
```json
{
"remoteDir": "",
"host": "",
"port": 22,
"username": "",
"relayUrl": ""
}
```
- The fields are defaults; a value entered in the settings window always wins.
- The SSH key is not part of it: import it in the settings (it is stored encrypted, never as a plain file).
- The file belongs to one device and is never synced — handy for preparing a device in advance.
## 🔐 Security
- **SSH is built into the plugin** (pure TypeScript on top of the audited [`@noble`](https://paulmillr.com/noble/)
crypto libraries), with modern algorithms only: curve25519 / ECDH key exchange, ed25519 / ECDSA / RSA-SHA2 keys,
chacha20-poly1305 and AES-GCM/CTR ciphers, and "strict KEX" protection against the Terrapin attack.
- **The server key is pinned** on first connect. If it ever changes, the plugin refuses to connect and warns you.
- **Supported private keys:** OpenSSH format (ed25519, ECDSA, RSA — with or without a passphrase), PEM RSA and
unencrypted PKCS#8. Convert PuTTY `.ppk` keys first (PuTTYgen → _Conversions → Export OpenSSH key_).
- **Passwords, passphrases and imported keys are encrypted** with AES-256-GCM. The encryption key is derived with
HKDF-SHA-512 from a random 256-bit device key, with a fresh salt and nonce per secret. The device key lives in
Obsidian's secret storage (or the app's local storage on older Obsidian versions) — **never** in the plugin's
`data.json`, so a copied `data.json` is useless on another device.
- **The relay** only forwards encrypted SSH bytes. Prefer `wss://`, or allow port 8022 only from your network / VPN.
- Do not keep a private key in an ordinary (not hidden) folder of your vault: such files are synced to the server.
## 📢 Disclosures
As required by the Obsidian developer policies:
- **Network use:** the plugin connects **only** to the SSH server you enter in its settings (directly on a
computer, or through the relay address you enter / `ws://:8022` on a phone). It sends your vault
files there and nowhere else. No other server is ever contacted.
- **Files outside the vault:** none. The plugin reads and writes only your vault (through Obsidian's API) and its own
settings folder. Your SSH key gets in only when you choose it in the **Import key…** window yourself.
- **System information:** none. The plugin does not read the computer's name, user name or environment; the default
device name is `Desktop-xxxx` / `Android-xxxx` with a random suffix.
- **No account, no payment, no ads, no telemetry.** Nothing is collected or sent anywhere except your own server.
- **Open source:** all code is in this repository under the [MIT license](LICENSE).
## 🩺 Troubleshooting
| Message / symptom | What to do |
|---|---|
| _fill in server address, user and remote folder_ | Fill in those three fields (or the config file). |
| _SSH keys are no longer read from files on disk_ | You updated from an older version that used a key file: press **Import key…** once and pick the same key. |
| _the SSH key is encrypted_ / _wrong SSH key passphrase_ | Enter the (correct) passphrase in **Key passphrase**. |
| _this is not a usable SSH private key_ | You picked the `.pub` file or a PuTTY `.ppk`; pick the private OpenSSH key. |
| _authentication failed_ | Is the public key in `~/.ssh/authorized_keys` on the server? Is the user right? |
| _SERVER KEY CHANGED_ | If the server was really reinstalled, press **Reset** next to **Trusted server key**. Otherwise do **not** connect — something is wrong. |
| _relay … is not reachable_ (phone) | Is the relay running (`systemctl status syncher-relay`)? Is port 8022 open? Is the address right (empty = `ws://:8022`)? Test from a computer: **Connection method → Through the relay** → **Test connection**. |
| _N item(s) could not be synced_ | Everything else is synced; see **Not synced** in the settings. Usual causes: a name with `* " \ < > : \| ?` (not allowed on Windows/Android — rename it on the device that created it), two files differing only in letter case (`Note.md` and `note.md` are one file on Windows/Android — rename one), a server folder without read permission. |
| A file does not appear on another device | Press **Sync now**. Hidden files (starting with a dot) and excluded patterns are not synced by design. |
| Another device shows ⚠ in **Devices seen on the server** | It runs another plugin version — update it and restart Obsidian there. |
| Anything else | Desktop: Ctrl+Shift+I → **Console** shows messages starting with `Syncher:`. |
## ❓ FAQ
Do I need the relay?
Only for phones. Computers connect to SSH directly.
Does it work on iPhone / iPad?
It is built the same way as on Android and should work through the relay, but it has not been tested on iOS yet.
Is my data stored anywhere else?
No. The only places are your devices and the folder on your server. The plugin keeps some bookkeeping in a hidden
`.syncher` folder inside the server folder (device heartbeats, a change journal, temporary upload files).
Can I sync several vaults?
Yes: use one server folder per vault and set the matching **Remote folder** in each vault.
Can I use it together with another sync tool on the same folder?
Please don't. Two sync tools on the same vault undo each other's deletions and fight over renames.
I used this plugin when it was called "Obsyncher"
The plugin was renamed to Syncher (the Obsidian directory does not allow names containing parts of "Obsidian").
Install Syncher next to it and enable it: on its first start it takes over the old settings, sync base and
encrypted passwords, disables the old copy (you can then delete it in **Settings → Community plugins**), and renames
the old `.obsyncher` metadata folder on the server. If you used a key **file**, press **Import key…** once.
A relay installed with the old script is replaced automatically when you run `sudo sh server/install-relay.sh` again.
How do I update?
BRAT updates the plugin automatically. By hand: replace the three files with the ones from the latest release and
restart Obsidian. The version shown at the top of the plugin settings tells you which one is running; see
[CHANGELOG.md](CHANGELOG.md) for what changed.
## 🛠️ Development
```bash
npm install
npm run build # type-check + bundle main.js
npm run release # build + copy to dist/syncher (checks that all version numbers match CHANGELOG.md)
npm test # unit tests + integration tests against a real OpenSSH server (skipped when none is running)
npm run e2e # end-to-end test inside a real Obsidian (set SYNCHER_OBSIDIAN to its executable)
```
- Integration tests use a throw-away user-mode sshd: `test/sshd/start-wsl-sshd.sh [port]`
(`SYNCHER_TEST_SSH=host:port:user`, `SYNCHER_TEST_KEYS`, `SYNCHER_TEST_WS` for the relay test).
- Releases: bump the version in `manifest.json`, `package.json` and `versions.json`, add a `CHANGELOG.md` section,
then push a tag equal to the version — GitHub Actions builds and publishes the release.
Project layout: `src/ssh` — SSH/SFTP client, `src/sync` — sync engine, `src/*.ts` — Obsidian plugin layer,
`server/` — relay and its installer, `test/` — tests, `docs/screenshots` — images used here.
## 📄 License
[MIT](LICENSE) © Mr.Racoon
