# Obsidian Gantt Calendar
[简体中文](./README_zh.md)
A powerful visual task management plugin for Obsidian.
**Multi-View Calendar** — Task / Year / Month / Week / Day / Gantt — six views with seamless switching
**Festival Display** — Solar festivals, lunar festivals, and 24 solar terms
**Data Visualization** — Task heatmap, daily task counts, 8 gradient palettes
**Smart Task Management** — Global filter, priority tags, 6 date fields, time precision (HH:mm)
**Timeline View** — Day/Week views with 24-hour timeline layout, drag & drop, quick create
**Daily Note Integration** — Embedded editor with edit/preview mode toggle
**Sidebar View** — Task search, filter & sort + daily timeline
**Highly Customizable** — Festival colors, heatmap palettes, task display count, and more
**Dual Format** — Full support for Tasks plugin (emoji) and Dataview plugin (inline field) formats
**Recurring Tasks** — daily/weekly/monthly/yearly repeat with virtual instance display
**Feishu Sync** — Bidirectional task sync with Feishu (Lark) via OAuth 2.0
---
## Screenshots

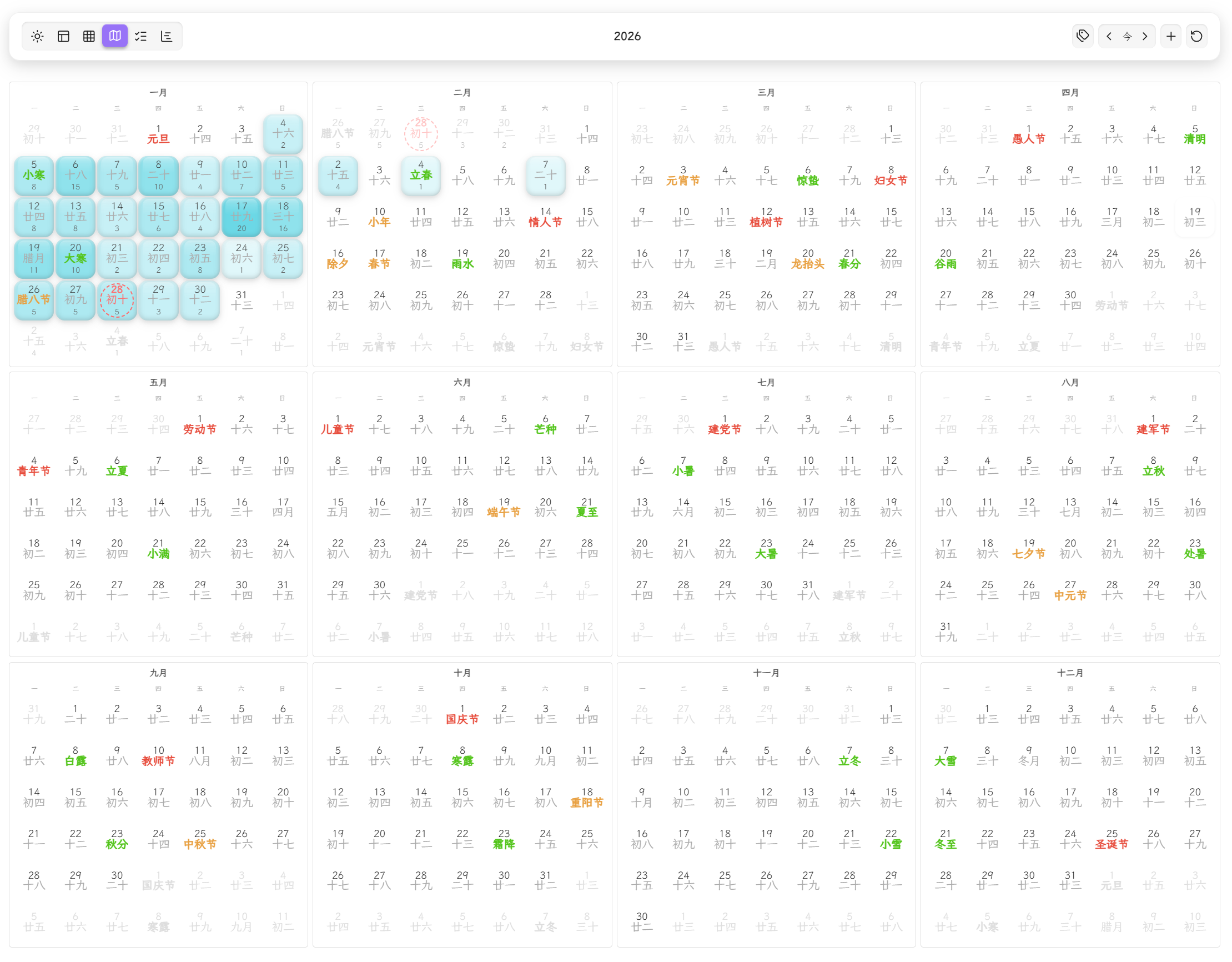

Year View

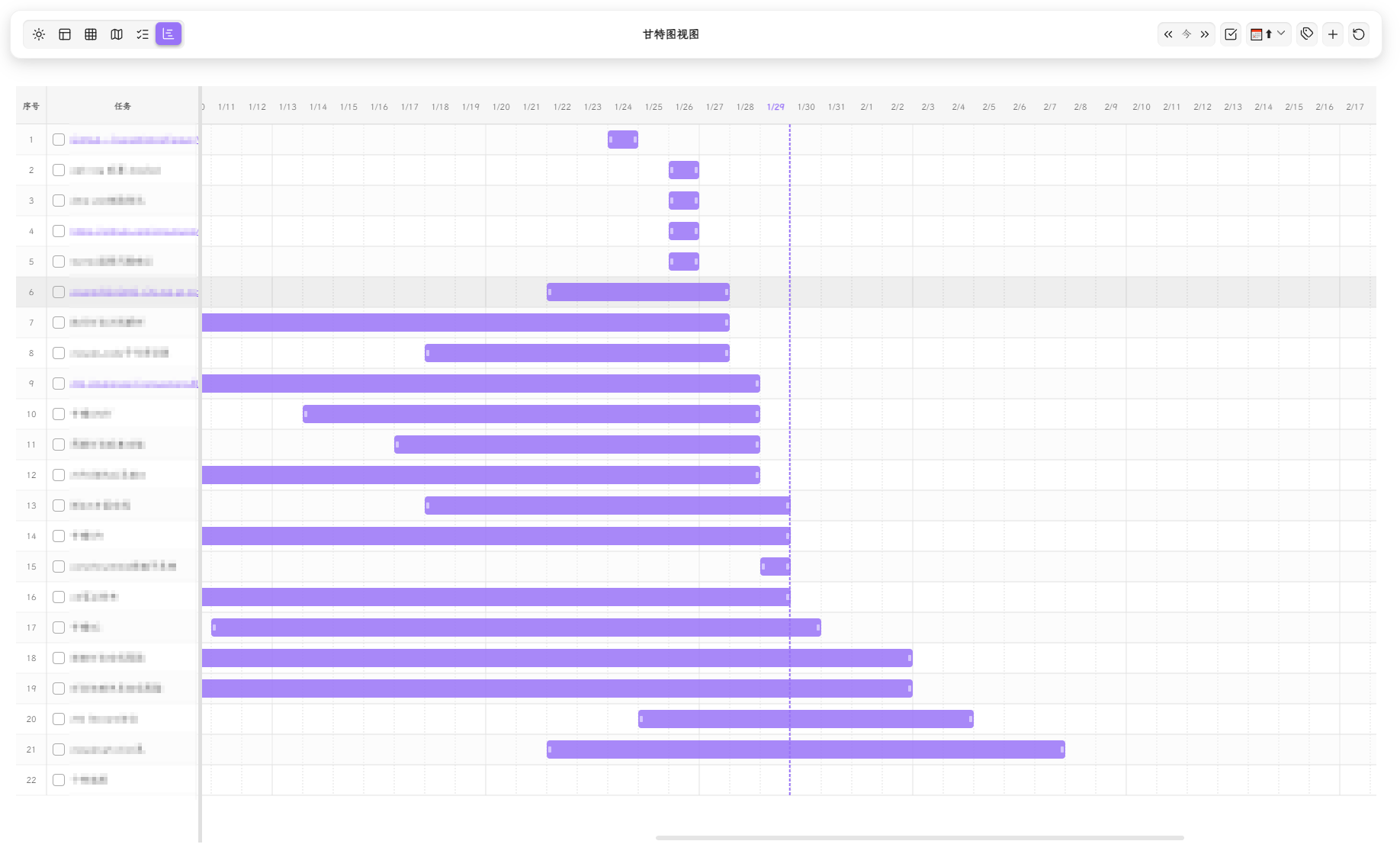

Gantt View
Week Timeline View
Sidebar View (Task List + Daily Timeline)
Day View with Embedded Editor
## Installation
### Via BRAT
1. Install and enable the community plugin [BRAT](https://github.com/TfTHacker/obsidian42-brat)
2. Run the command `BRAT: Add a beta plugin for testing`
3. Enter the repository URL: `https://github.com/sustcsugar/obsidian-gantt-calendar`
### Manual
1. Download the latest [Release](https://github.com/sustcsugar/obsidian-gantt-calendar/releases)
2. Extract and copy the folder to `/.obsidian/plugins/`
3. Restart Obsidian and enable the plugin in Settings
## Quick Start
### Open the View
- Click the **sidebar icon** to open the main calendar view
- Use the **view switcher** in the toolbar to switch between views
### Create Tasks
Use the **Add Task** button in the toolbar, or manually write tasks in any Markdown file:
```markdown
- [ ] 🎯 Complete project documentation 📅 2025-12-20
```
Refresh the plugin and the task will appear in the calendar and task list.
## Features
### Layout
The plugin uses a **toolbar + content area** layout:
- **Toolbar Left** — View switcher (6 views)
- **Toolbar Center** — Current date range / title
- **Toolbar Right** — Functional buttons (navigation, sort, filter, add task, etc.)
### Task Formats
**Tasks Plugin Format (Emoji)**
```markdown
- [ ] 🎯 Complete project documentation ⏫ ➕ 2025-01-10 📅 2025-01-15
```
| Emoji | Meaning | Emoji | Meaning |
|-------|---------|-------|---------|
| `🎯` | Global filter marker | `🔺` | Highest priority |
| `⏫` | High priority | `🔼` | Medium priority |
| `🔽` | Low priority | `⏬` | Lowest priority |
| `➕` | Created date | `🛫` | Start date |
| `⏳` | Scheduled date | `📅` | Due date |
| `✅` | Completion date | `❌` | Cancelled date |
| `🔁` | Recurring task | - | - |
**Dataview Plugin Format (Inline Fields)**
```markdown
- [ ] 🎯 Complete project documentation [priority:: high] [created:: 2025-01-10] [due:: 2025-01-15]
```
| Field | Meaning | Field | Meaning |
|-------|---------|-------|---------|
| `priority::` | Priority | `created::` | Created date |
| `start::` | Start date | `scheduled::` | Scheduled date |
| `due::` | Due date | `completion::` | Completion date |
| `cancelled::` | Cancelled date | `repeat::` | Recurrence rule |
**Time Precision**
- Date: `YYYY-MM-DD` (e.g., `2026-04-27`)
- Time: `YYYY-MM-DD HH:mm` (e.g., `2026-04-27 14:00`)
- Tasks with time automatically display in timeline layout
**Recurring Task Syntax**
```markdown
🔁 every day # Every day
🔁 every 3 days # Every 3 days
🔁 every week on Monday # Every Monday
🔁 every month on 15 # Every month on the 15th
🔁 every year on 01-01 # Every year on Jan 1
🔁 every weekday # Every weekday
🔁 when done # Restart after completion
```
### Year View
- **Year Overview** — 12 month cards showing full-year task distribution
- **Task Heatmap** — 5-level color gradient for task density
- 8 palette options: blue / green / red / purple / orange / cyan / pink / yellow
- 3D heatmap effect (off / slight / prominent)
- **Responsive Layout** — Auto-switches between 4×3 / 3×4 / 2×6 / 1×12 grids
- **Task Count** — Optional per-day task total display
- **Lunar Calendar** — Chinese lunar dates in month cards
- **Click Navigation** — Click a date to switch to Day View
### Month View
- **Monthly Calendar** — Standard month grid layout with daily tasks
- **Week Numbers** — ISO week numbers shown in the first column
- **Task Display Limit** — Configurable per-day task count (1–10) with "+N more" overflow
- **Task Popup** — Click a date to view all tasks for that day
- **Festival Display** — Solar/lunar/solar-term festivals with distinct colors
- **Drag & Drop** — Drag task cards between days to reschedule
- **Recurring Tasks** — Virtual instances for repeating tasks
- **Week Start** — Configurable Monday or Sunday start
### Week View
- **Dual Mode Layout**
- **List Mode** — When no timed tasks exist, displays 7-column card layout
- **Timeline Mode** — When timed tasks are detected, shows 24-hour vertical time grid with 7 days side by side
- **Today Highlight** — Current day is visually emphasized
- **Navigation** — Previous week / This week / Next week
- **Drag & Drop** — Drag tasks to any day or hour slot
- **Quick Create** — Hover over empty time slots to reveal "+" button for fast task creation
- **Current Time Indicator** — Red line marking the current time
- **Lunar Info** — Lunar dates and festivals in day headers
### Day View
- **Task List** — Detailed view of all tasks for the selected day
- **Timeline Layout** — When timed tasks exist, renders 0:00–23:00 time grid with tasks positioned at their hours
- **Drag & Drop** — Drag tasks to any hour slot to adjust time
- **Quick Create** — Hover over empty slots for "+" quick-create button
- **Current Time Indicator** — Red line at the current time
- **Daily Note Integration**
- Embedded full editor (WorkspaceSplit mode)
- Edit / Preview mode toggle
- Auto-loads daily note for the selected date
- Supports Obsidian core daily notes, Periodic Notes plugin, and custom paths
- **Resizable Split** — Draggable divider between task and note panes (horizontal or vertical layout)
- **Lunar Info Bar** — Lunar date, festivals, and solar terms
### Task View
- **Task List** — Centralized display of all tasks
- **Date Range Filter** — All / Today / This Week / This Month / Custom range
- **Time Field Selector** — Filter by any of 6 date fields
- **Multi-dimensional Filtering** — Status, priority, and tags (AND/OR/NOT operators)
- **Sorting** — 7 sort fields with asc/desc toggle
- **Persistent State** — Filter and sort settings persist across refreshes
### Gantt View
- **Interactive Gantt Bars** — Custom SVG rendering engine
- Drag entire bar to shift dates
- Drag endpoints to adjust start/end dates
- Drag to change progress percentage
- Click to open task edit modal
- **Navigation** — Jump to today / scroll left / scroll right
- **Incremental Refresh** — Smart update strategy to avoid full redraws
- **Tag & Status Filtering** — Filter gantt bars by tags and status
- **Configurable Fields** — Choose which date fields map to gantt start/end
### Sidebar View
Two-tab sidebar for quick task access:
**Task List Tab**
- Keyword search (debounced)
- Multi-dimensional filters: status, priority, tags (OR/AND), date range
- Sort by: priority / due date / start date
- Click task to navigate to source file
**Daily Timeline Tab**
- 24-hour timeline for today's timed tasks
- All-day task section
- Current time indicator line
- Drag & drop to adjust time
- Quick create on empty slots
### Context Menu
Right-click any task for:
- **Edit Task** — Full edit modal (description, priority, dates, repeat, tags)
- **Create Note** — Generate a wiki-linked note from the task (same name or alias)
- **Set Priority** — 6 levels: highest / high / medium / normal / low / lowest
- **Set Status** — Custom statuses (important, question)
- **Postpone** — Delay 1/3/7 days (from due date or from today)
- **Cancel / Restore** — Toggle cancelled state
- **Delete** — Remove task from markdown file
### Feishu (Lark) Sync
- **Bidirectional Sync** — Push local tasks to Feishu and pull Feishu tasks to Obsidian
- **OAuth 2.0** — Secure authentication with automatic token refresh
- **Push Filters** — Filter by file paths, completion status, and date
- **Conflict Resolution** — Multiple strategies: local-wins, remote-wins, newest-wins, manual
- **Auto Sync** — Configurable automatic sync interval
- **Sync Result Modal** — Detailed per-task sync results with statistics
## Roadmap
### Task Parsing
- [x] Tasks and Dataview dual-format parsing
- [x] Global filter markers
- [x] Task tags
- [x] Task description
- [x] 6 priority levels
- [x] 6 date fields with time precision (HH:mm)
- [x] Recurring task recognition and display
- [ ] Nested tag recognition
- [ ] Multi-line task recognition
- [ ] Sub-task recognition
- [ ] Task dependency relationships
### Views
- [x] Day View with Daily Note integration (embedded editor)
- [x] Day View timeline layout
- [x] Week View dual mode (list + timeline)
- [x] Week/Month View drag & drop
- [x] Year View heatmap and task count
- [x] Task View (multi-dimensional filter + date range)
- [x] Gantt View (drag + incremental refresh + navigation)
- [x] Sidebar View (task list + daily timeline)
### Toolbar
- [x] View switcher
- [x] Tag / status / priority filtering
- [x] Date navigation buttons
- [x] Time field selector
- [x] Add task button
### Interactions
- [x] Task cards (description, tags, priority)
- [x] Context menu (edit, create note, priority, status, postpone, cancel, delete)
- [x] Hover tooltips
- [x] Quick create on empty time slots
### Future Plans (v2.0.0)
- [ ] Third-party calendar subscription (Feishu Calendar, Outlook Calendar)
- [ ] Microsoft To Do sync
- [ ] Google / Apple Calendar via CalDAV
## Contributing
Issues and Pull Requests are welcome!
## License
[MIT](LICENSE)
---
Found a bug or have a suggestion? Open an [Issue](https://github.com/sustcsugar/obsidian-gantt-calendar/issues)
Enjoying the plugin? Give it a ⭐!
