# Canvas Markdown Side Editor
[](https://github.com/ShawnSWu/Obsidian-Canvas-Markdown-Side-Editor/releases)
[](https://github.com/ShawnSWu/Obsidian-Canvas-Markdown-Side-Editor/releases)
[](LICENSE)
[](https://obsidian.md)
Edit Canvas Markdown cards from a side panel — live preview, autosave, and no zooming in and out of cramped cards.
---
## Demo
### Side editor — open, edit, autosave
https://github.com/user-attachments/assets/b2075ff8-2327-440d-970a-5ca29423bcf1
> Click any Canvas card and start typing. Switching cards autosaves. The panel can dock right, left, top, bottom, or float.

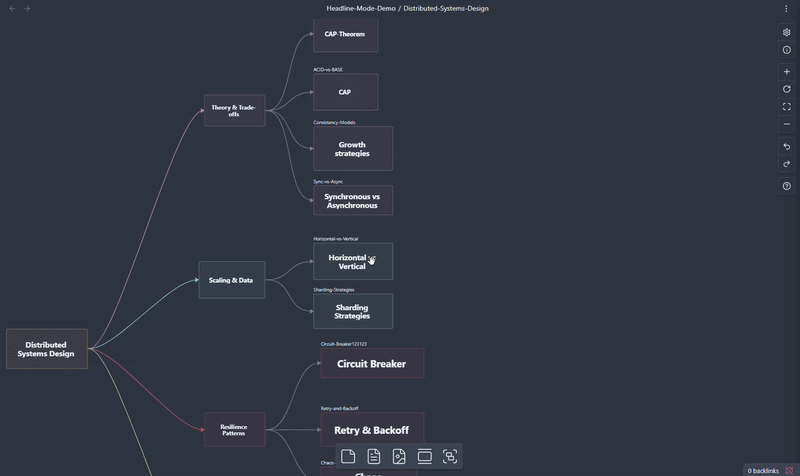

### Headline mode — turn the canvas into a board of titles
https://github.com/user-attachments/assets/48b1fe0d-a91f-469d-9d64-2fa90e4013ab
> Toggle Headline mode in settings to collapse every card to its first `# H1`. Standalone image cards keep showing their image; text cards collapse to just their headline (any inline `![[image.png]]` is hidden along with the body). Cards without a title show a faint "No headline" placeholder so you can spot what's missing.
---
## Why this plugin?
Obsidian Canvas is great for visual thinking, but editing Markdown cards directly inside Canvas is cramped — zoom in, double-click a small card, lose context, repeat. Canvas Markdown Side Editor brings a full Obsidian editor next to the Canvas so you can write comfortably without leaving the big-picture view.
> *Write Markdown with the comfort of a full editor, while keeping the big picture in sight.*
---
## Features
- **Flexible docking & floating panel** — dock the side editor on the right, left, top, or bottom of the Canvas, or detach it as a floating panel you can drag and resize. Position and size persist per dock.
- **Headline mode** *(issue #13)* — vault-wide toggle that collapses every Canvas card to its first `# H1`. Get a clean "table of contents" view; full content stays editable through the side editor. Standalone image cards keep showing their image, while text-card bodies (including inline images) collapse to the headline *(issue #21)*. Headline size is tunable as a percentage of card width (5–60%).
- **Image cards fill their frame** *(issue #21)* — Canvas image cards stretch to fill the whole card (`object-fit: fill`) instead of leaving Obsidian's default letterbox gap, and scale up past the image's natural size. Applies to every Canvas image card while the plugin is enabled.
- **Open-and-edit instantly** — clicking a Canvas Text card, or a File card pointing to a `.md` file, opens the side editor automatically.
- **Auto-save** — saves on card switch or when you click the Canvas background.
- **Auto-close while editing inside Canvas** — if you focus a Canvas card's own editor, pending changes save and the side panel closes to avoid edit conflicts.
- **Paste images** — paste screenshots into the side editor; files land in your configured attachment folder and are linked according to your Obsidian settings.
- **Live preview** — built-in MarkdownRenderer, themed by Obsidian. Toggle preview on/off; resize panes by dragging.
- **Read-only mode** — preview-only view with the editor hidden. Useful for a clean reading panel.
- **Command palette** — `Canvas Side Editor: Toggle Preview` is bindable to a hotkey.
---
## Quick Start
1. [Install via BRAT](#option-1--brat-recommended-while-awaiting-obsidian-approval).
2. Open a Canvas in Obsidian.
3. Click any Canvas Text card, or a File card linking to a `.md` file. The side editor opens.
4. Type. Click another card, or the Canvas background, to autosave.
---
## Installation
### Option 1 — BRAT (recommended while awaiting Obsidian approval)
This plugin is currently **awaiting approval in the Obsidian Community Plugins directory**. Until that lands, install via [BRAT](https://github.com/TfTHacker/obsidian42-brat) — it auto-fetches future updates.
https://github.com/user-attachments/assets/82719127-f450-49e9-b99e-b0700451615d
1. In Obsidian: Settings → **Community Plugins** → enable third-party plugins.
2. Settings → **Community Plugins** → **Browse** → search "BRAT" → Install and enable.
3. Settings → **BRAT** → **Add Beta plugin**.
4. Paste the repo URL: `https://github.com/ShawnSWu/Obsidian-Canvas-Markdown-Side-Editor`
5. Confirm. BRAT installs the plugin and pulls updates automatically.
### Option 2 — Community Plugins (once approved)
Settings → **Community Plugins** → **Browse** → search "Canvas Markdown Side Editor" → Install → Enable.
> *Pending Obsidian directory approval.*
### Option 3 — Manual
Download `main.js`, `styles.css`, and `manifest.json` from the latest [Release](https://github.com/ShawnSWu/Obsidian-Canvas-Markdown-Side-Editor/releases) and drop them into `/.obsidian/plugins/canvas-markdown-side-editor/`. Reload Obsidian and enable the plugin.
---
## Configuration
Open Settings → **Community Plugins** → **Canvas Markdown Side Editor**.
| Setting | Default | What it does |
|---|---|---|
| Dock position *(issue #11)* | Right | Right / Left / Top / Bottom / Floating. Floating panels remember position and size. |
| Default panel width | 480 px | Initial width when docked left or right. Drag the panel edge to resize; the width is remembered. |
| Default panel height | 360 px | Initial height when docked top or bottom. Drag the panel edge to resize; the height is remembered. |
| Preview debounce | 80 ms | Delay before the preview re-renders on edits. Increase for very large notes. |
| Read only | off | Hide the editor; show the preview pane only. |
| Headline mode *(issue #13)* | off | Collapse every Canvas card to its first `# H1`. |
| Headline title size | 22 | H1 size as a percentage of card width (5–60). Bigger value → bigger text. |
| Editor font size (px) | theme | Override editor font size. Leave blank to follow your theme. |
| Preview font size (px) | theme | Override preview font size. Leave blank to follow your theme. |
---
## Commands
| Command | Default hotkey | Description |
|---|---|---|
| `Canvas Side Editor: Toggle Preview` | _unbound_ | Flip the preview pane on or off. |
Bind any command to a hotkey from Settings → **Hotkeys**.
---
## Compatibility
- Requires Obsidian `1.1.0` or later.
- Desktop only (`isDesktopOnly: true`).
---
## Troubleshooting
- **Side editor doesn't open** — confirm the card is a Text card, or a File card linking to a `.md` file. Image, PDF, and link cards aren't supported.
- **Headline mode shows an empty card** — that card has no `# H1`. A faint "No headline" placeholder appears so you can spot which cards still need a title.
- **Floating panel opens off-screen after a monitor change** — Settings → reset Dock position to Right, then switch back to Floating.
---
## Changelog
See [GitHub Releases](https://github.com/ShawnSWu/Obsidian-Canvas-Markdown-Side-Editor/releases) for version-by-version notes.
---
## Contributing
Issues and pull requests welcome at [github.com/ShawnSWu/Obsidian-Canvas-Markdown-Side-Editor/issues](https://github.com/ShawnSWu/Obsidian-Canvas-Markdown-Side-Editor/issues).
Local development:
```bash
npm install
npm run dev # esbuild watch
npm test # vitest
```
---
## License
MIT — see [LICENSE](LICENSE).
