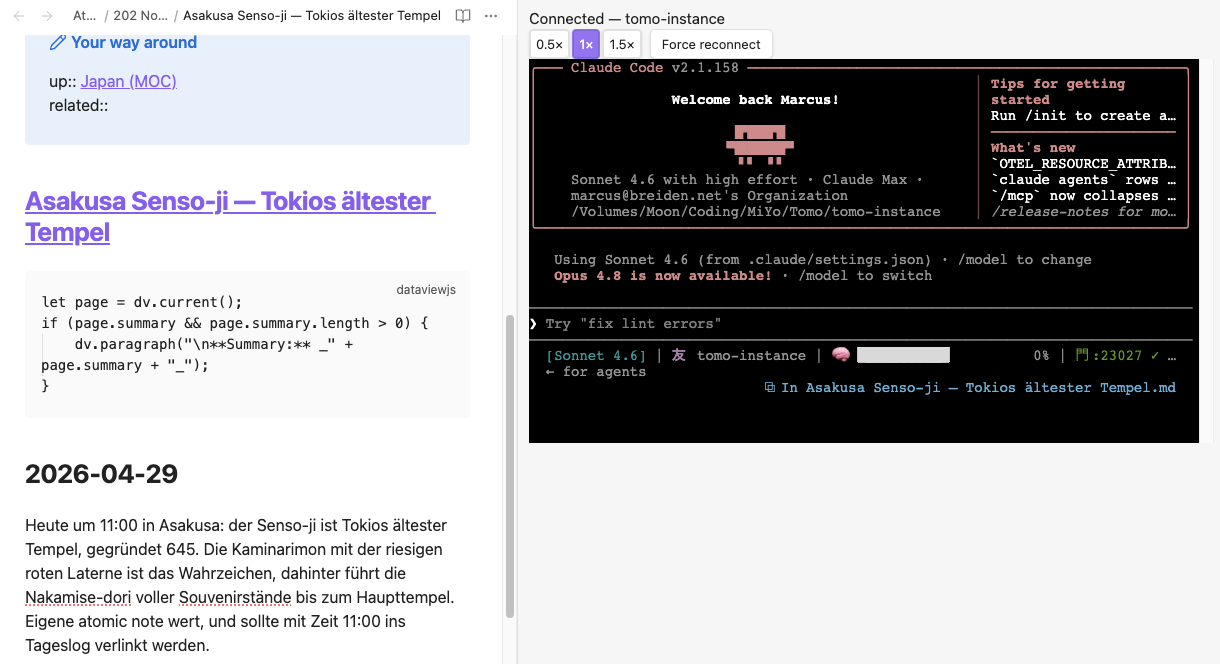

# MiYo Tomo Hashi — Obsidian ↔ MiYo Tomo Bridge Three things in one Obsidian plugin: - **A** — **Tomo session:** A live chat tab that attaches to a running [MiYo Tomo](https://github.com/MMoMM-org/miyo-tomo) (called Tomo further) Docker container. Talk to Tomo from inside Obsidian. - **B** — **Tomo context:** A loopback bridge that gives Tomo (running Claude Code) live editor context — active file, cursor position, and current selection — over a localhost WebSocket. Disabled by default; opt-in. - **C** — **Tomo instruction executor:** An instruction executor that runs `_instructions.json` files Tomo emits, applying batch vault edits with full preview, run logs, and idempotent re-runs. > Part of the **MiYo** family. The plugin is referred to as **MiYo Tomo Hashi** in the Obsidian community-plugin index and in the settings UI; "Hashi" alone is used as a short form throughout this README and the source. 橋 means *bridge*.

## Why MiYo Tomo Hashi? tldr; you don't need, or can't really use this plugin without [MiYo Tomo](https://github.com/MMoMM-org/miyo-tomo) Tomo (Claude Code) generates a lot of vault-shaped output — MOCs to create, notes to move, daily logs to update — and Tomo's review step is where you decide *what* to apply. Hashi is what runs the apply step automated, with two opinions baked in: - **Apply happens locally, with a preview.** Nothing in your vault changes until you've seen the action list. Even auto-run mode shows the preview *first*, just without blocking. And if you have the peace of mind.. Tomo Hashi even does everything in the background.. your choice. - **Re-running is safe.** Every action has an idempotency probe. Hashi writes `applied: true` next to each action it commits, so a re-trigger picks up where it stopped — after a crash, after manual cleanup, after a partial cancellation. If you're already using Tomo for inbox processing or daily-note summaries, Hashi turns its review-output into one click. Hashi itself doesn't have any AI component, it is pure code. ## Three components, one plugin

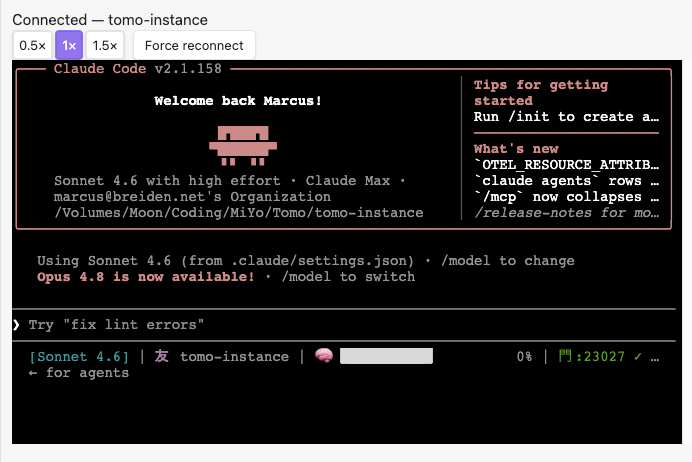

All three components share the plugin process and the settings tab, but **nothing else**. You can use Hashi for instruction sets without ever connecting to a Tomo container, enable Tomo context without using the chat view, or use any combination independently. See [How It Works](docs/how-it-works.md) for the architectural boundary. ## Features ### A — Tomo session GUI A way to talk to Tomo directly from inside Obsidian. It displays the Docker console 1:1 and lets you interact with Tomo while the Tomo Docker container runs in the background — it doesn't manage Tomo, though. - **Unified chat tab** rendering the Tomo container's TUI via xterm.js - **Bidirectional input** — type directly into the terminal; `@file` references are injected into the session via the file-menu action - **Connection state** in the status bar (友) and chat-view header - **Force reconnect** with fixed-schedule backoff (5 attempts, 15.5 s budget) - **Auto-reconnect on plugin load** — by container label, with a Notice telling you which one - **Zoom controls** (0.5× / 1× / 1.5×), persisted across reloads - **Sync-aware** — the persisted instance name handles Obsidian Sync correctly (with a visible warning) - **No external surface** — Docker socket is *outbound only*, no ports opened ### B — Tomo context (ambient editor context for Tomo) A way to let Tomo know what you're working on — which note is open, which text is selected. That lets you ask Tomo things like: "Can you find more material like this in my vault?" Tomo gets the selected text directly as context (so for this part you can circumvent [MiYo Kado](https://github.com/MMoMM-org/miyo-kado) access control to files), but for anything further Tomo uses Kado again. - **Localhost WebSocket server** bound to `127.0.0.1` (default port `23027`, configurable). Loopback-only — not reachable from any other host. - **Claude Code IDE protocol** — gives Claude Code in your Tomo container live ambient context: the active file path (vault-relative), cursor position, and currently selected text. - **Disabled by default** (`ideBridgeEnabled: false`). Enable it in **Settings → MiYo Tomo Hashi → Tomo context** and copy the generated token + port into your Tomo settings. - **Auth-gated** — the `x-claude-code-ide-authorization` bearer token is checked before the WebSocket handshake completes; wrong or missing token gets HTTP 401. - **Tomo handles its side** — after you copy the token and port into Tomo, Tomo writes the container-side discovery lock file. Hashi doesn't touch that side. - **Ephemeral only** — the bridge streams editor state live; nothing it sends is logged or persisted. ### C — Instruction executor Delegate the tedious work — moving, renaming, and editing notes from your Inbox to the right place — *after* you've approved the suggestion document. Hashi does the same steps you would, plus a few more via extensible hooks: - Alias needs reconfiguring after a rename? → a hook does it. - A different note needs updating after a delete? → a hook. - Don't know how to write one? → ask Tomo 🙂 Cut down on the busywork — with the peace of mind that Hashi does only what you want. (A backup is still recommended 🙂 — shameless plug: my own [Obsidian Archivist](https://github.com/MMoMM-org/obsidian-archivist) does exactly that.) - **Three execution modes**: Confirm before run / Auto-run with preview / Silent - **Preview → progress → summary** modal, all stages in one Modal instance - **Idempotent re-runs** with a partial-resume banner ("N of M remaining (X already applied)") - **Per-run log** as a markdown file in your inbox folder, with retention policy - **Status bar 橋** indicator (idle / running / error) - **Path safety** — `.obsidian/`, `.git/`, `.trash/`, hooks dir, and traversal-escape paths are denied - **Optional hooks** — `.cjs` files in your vault, full plugin privilege, with an ask-mode disclosure modal - **Schema validation** — vendored Tomo schema, ajv-compiled at module load - **9 action kinds** — create_moc, move_note, link_to_moc, add_relationship, update_tracker, update_log_entry, update_log_link, delete_source, skip ## Documentation | Document | Audience | Content | |---|---|---| | [Installation](docs/installation.md) | Everyone | Community Plugins, BRAT, manual install | | [Configuration](docs/configuration.md) | Vault owners | Settings reference, all three components | | [How It Works](docs/how-it-works.md) | Vault owners | Three-component architecture, layer boundaries | | [Session View](docs/session-view.md) | Tomo users | Chat tab, terminal, zoom, file-prefill — branch A | | [Chat](docs/chat.md) | Tomo users | Picker, reconnect schedule, status bar 友 — branch A | | [Context](docs/context.md) | Tomo users | Enable + Tomo wiring, auth token, connection troubleshooting — branch B | | [Instruction Executor](docs/instruction-executor.md) | Tomo users | Modal stages, modes, partial-resume, status bar 橋 — branch C | | [Action Reference](docs/action-reference.md) | Tomo users | All 9 action kinds with idempotency rules — branch C | | [Hooks](docs/hooks.md) | Power users | `.cjs` hook authoring, policy, disclosure modal — branch C | | [Run Log](docs/run-log.md) | Vault owners | Log format, retention, hook output — branch C | | [Development](docs/development.md) | Contributors | Build, test, lint, architecture, test vault | | [Dependency Security](docs/dependency-security.md) | Contributors / reviewers | Supply-chain advisories, bundle-level reachability, `overrides` rationale | ## Quick Start 1. Install [Tomo](https://github.com/MMoMM-org/miyo-tomo) and [Kado](https://github.com/MMoMM-org/miyo-kado) 2. Configure both 3. [Install the plugin](docs/installation.md) 4. Start the Tomo Instance for your Vault. ### Quick start — A — Tomo session GUI 5. **Settings → MiYo Tomo Hashi → Tomo chat → Connect** → pick the container in the picker 6. Run the command: MiYo Tomo Hashi: Show chat window 7. The chat view opens automatically; type to interact, watch Claude Code's TUI render inline

### Quick start — B — Tomo context 5. **Settings → MiYo Tomo Hashi → Tomo context** 6. Configure the port if necessary 7. Enable the bridge server 8. Copy the Auth token 9. Stop Tomo container 10. Run /scripts/update-tomo.sh 11. Pick your instance if necessary 12. Choose to enable Hashi context 13. Paste the Auth token 14. Make sure port is correct 15. run Tomo container

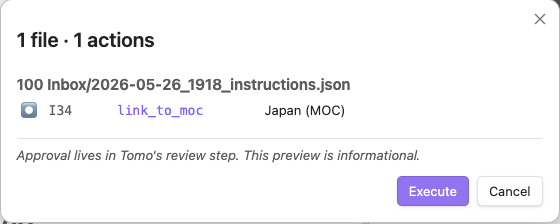

### Quick start — C — Instruction executor 5. **Settings → MiYo Tomo Hashi → Instruction executor** 6. **Tomo inbox folder** → set your inbox path (e.g., `100 Inbox`) 7. Run the full inbox process in Tomo till you have your instruction documents 8. **Command palette → "Execute instructions document"** → review the action list → **Execute** 9. Watch progress; check the run log file (`tomo-hashi-run-log_…md`) afterwards

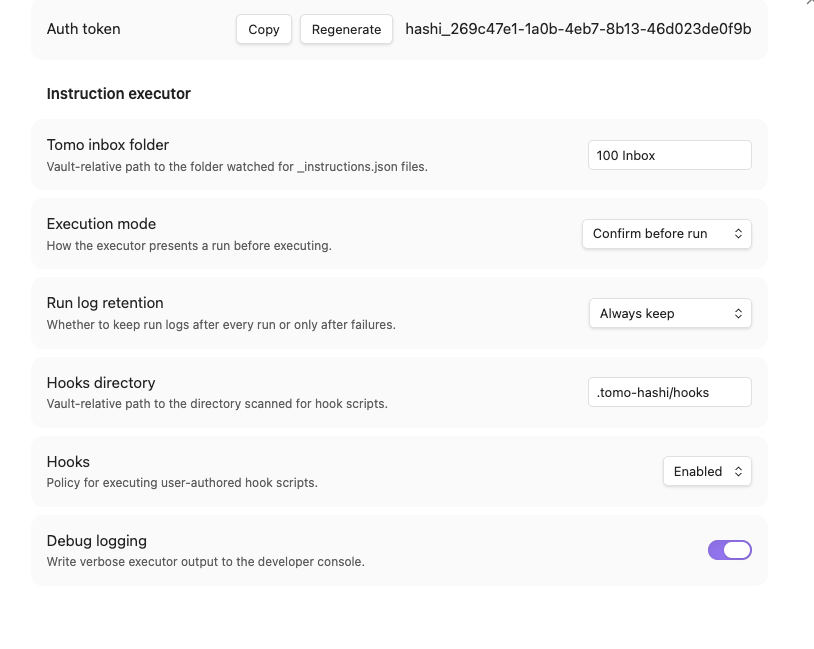

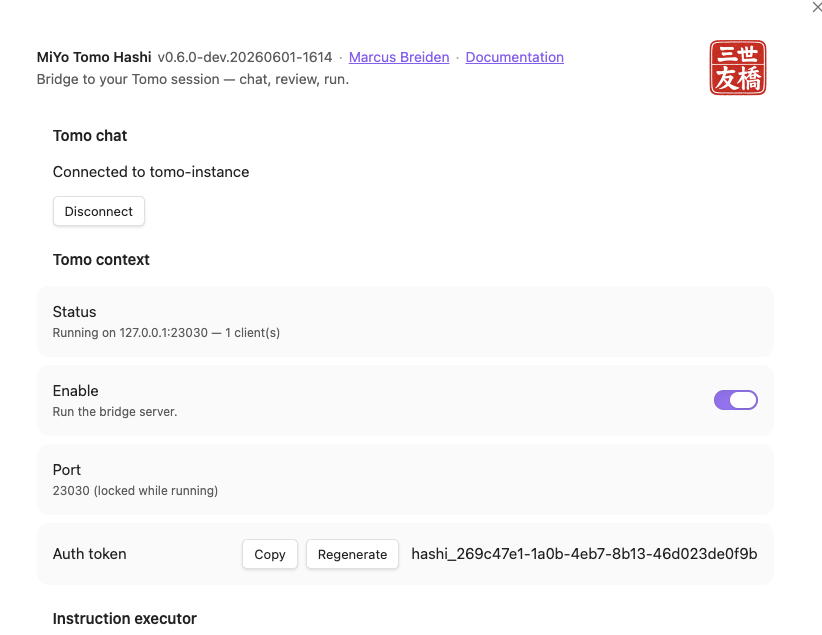

## Screenshots ### Settings

### Execution flow > Screenshot — progress view with rows partway through, glyphs animating, sticky error banner.

> Screenshot — summary view with stats line and View errors button.

### Hook disclosure > Screenshot — hook disclosure modal asking the user whether to enable a hook (Disable focused as safe default).

## Roadmap - **Granular hook policy** — per-hook enable/disable persistence (currently session-scoped after the disclosure-modal decision). - **Action: copy_note** — explicit copy variant of `move_note`. - **Rollback hint** — when a run halts mid-way, surface a `git restore`-style suggestion in the summary. - **Mobile compatibility** — currently `isDesktopOnly: true` because of Docker socket and Node `fs` use. Mobile would need a non-Docker transport or drop the Tomo Chat interface. Let me know. ## Known edge cases - **Operating systems.** Desktop only (`isDesktopOnly: true`). **macOS** is the primary, verified platform; **Linux** is experimental and **Windows** is user-contributed — Hashi runs the same code on all three (no per-OS gating), but only macOS is regularly exercised. On any OS, Docker reachability is the real gate, surfaced as a named error if the daemon or socket isn't available. - **Auto-reconnect across Obsidian Sync devices.** The persisted `chosenInstanceName` is replicated by Sync. On a second device, the auto-attach may land on a same-labelled but unrelated container. Hashi shows a Notice naming the instance it just attached to so a wrong-container connect is detectable. ## Part of MiYo Hashi is part of **MiYo**, a small family of Obsidian-adjacent tools focused on giving you control over what your assistants can see and do. - [**MiYo Kado**](https://github.com/MMoMM-org/miyo-kado) — security-first MCP gateway. The *external-inbound* surface for AI assistants. Default-deny, per-key scopes, audit log. - [**MiYo Tomo**](https://github.com/MMoMM-org/miyo-tomo) — Claude Code AI workflows. The session you talk to from Hashi's chat view, and the source of the `_instructions.json` Hashi runs. - **MiYo Tomo Hashi** — *this plugin*. Paired with Tomo. Outbound Docker socket + optional loopback context bridge; no external surface off-host. Scope boundary: Kado is the only external-inbound vault surface in the MiYo family. Hashi's Tomo context bridge is an **opt-in loopback-only** inbound surface (`127.0.0.1`, disabled by default) for its single consumer — Claude Code in your local Tomo container. It is not reachable from any other host and exposes no vault read/write capability (that's Kado's domain). ## Privacy See [PRIVACY.md](PRIVACY.md) for the full statement. Short version: nothing leaves your machine. No telemetry, no crash reports, no third-party services. ## Support If MiYo Tomo Hashi is useful and you want to help me keep building, you can support development via: - [Buy Me a Coffee](https://ko-fi.com/mmomm) - [GitHub Sponsors](https://github.com/sponsors/MMoMM-org) Issues and pull requests are also very welcome. ## Contributing See the [Development Guide](docs/development.md) for build, test, and lint commands. Short version: 1. **Open an issue first** for non-trivial work so we can align on scope. 2. **Fork & branch** from `main` with a descriptive name (`fix/`, `feat/`). 3. **Keep changes focused** — one feature or one fix per PR. 4. **Tests & lint must pass** — `npm run build`, `npm test`, `npm run lint`. 5. **Conventional commits** — release notes are generated from commit history. 6. **Open a PR** against `main` and reference the issue. For security issues, please **do not** open a public issue — email marcus@mmomm.org instead. ## License [MIT](LICENSE)
