# Tabula Rasa
Simple sketching for [Obsidian](https://obsidian.md).
Draw directly in your vault — then export your sketches, embed them in notes or keep them as standalone, re-editable files.
> **Status:** available in the Obsidian community plugins directory — install it from
> *Settings → Community plugins* in Obsidian, no BRAT required. See where we are and where
> we're going in **[docs/PHASES.md](docs/PHASES.md)**.
## Screenshots
## Features
- ✏️ **Natural drawing** with pressure-tapered strokes (perfect-freehand) using
finger, Apple Pencil, mouse, or any stylus. Finger and mouse strokes taper from
drawing speed, so lines look hand-drawn even without real pressure.
- 📱 **Mobile-first** — works on iPhone and iPad. Smooth Pointer-Event handling
with coalesced events, no accidental page scrolling, and optional **palm
rejection** when using a stylus.
- 🤏 **Pinch to zoom, pan, and twist to rotate** the canvas so you can draw from
any angle; wheel-zoom on desktop, plus a *Fit to screen* button that recenters
and returns the page to upright.

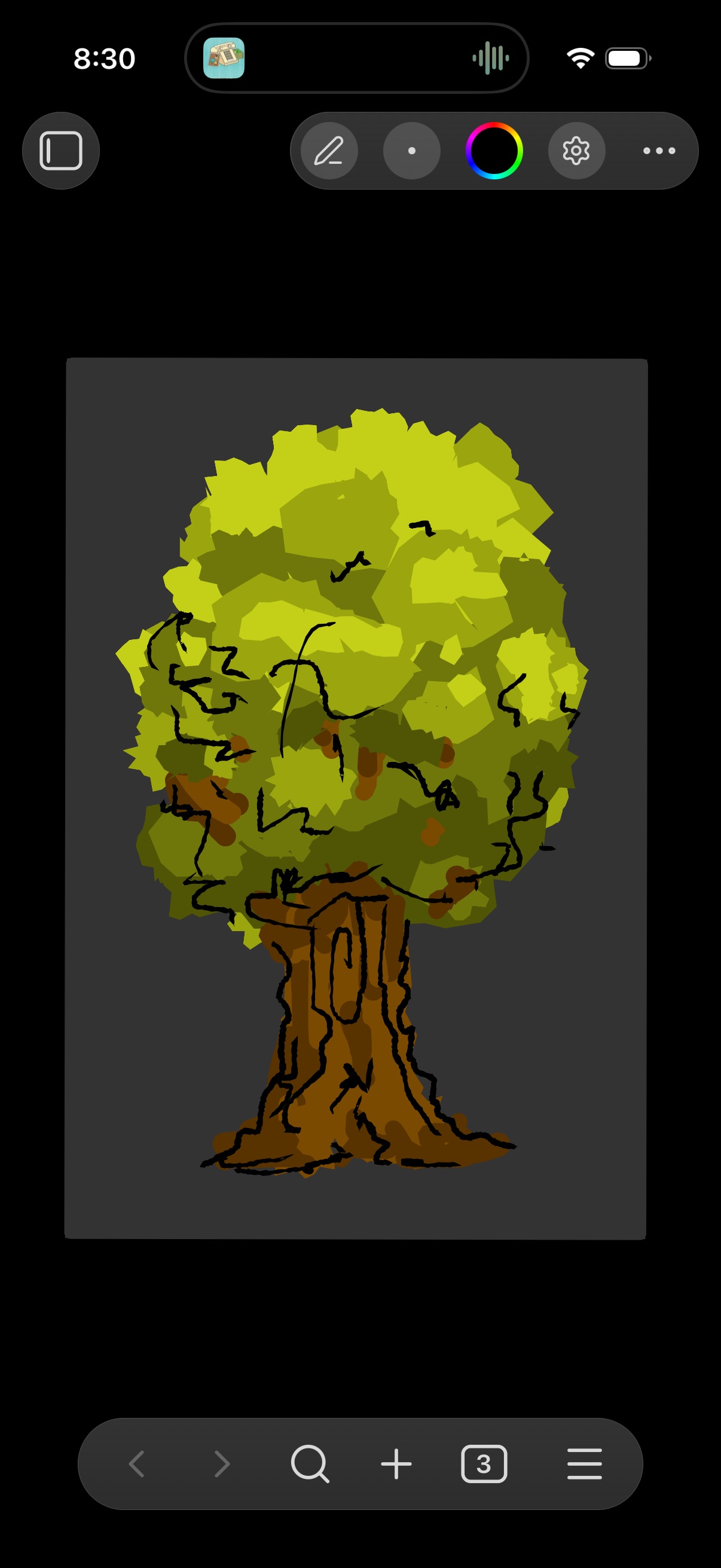

- 🫙 **Almost no UI** — four small circular buttons (tool, size, colour, settings)
sit in Obsidian's own view header, so the sketch adds no chrome of its own.
Their size is adjustable (24 / 32 / 40 px) and the tap area stays comfortable
either way.

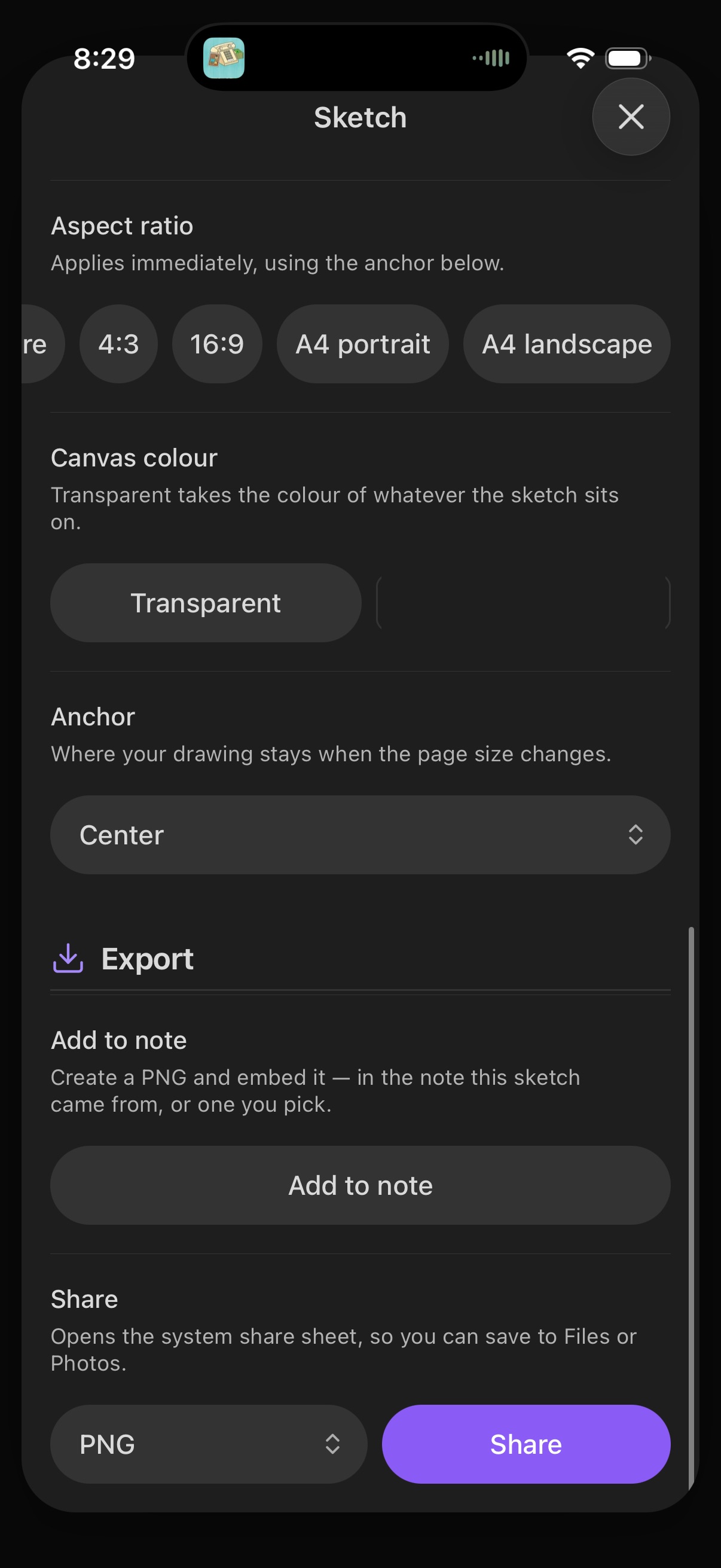

- 📐 **Resizable canvas** — change the page size or aspect ratio from the settings
sheet (square, 4:3, 16:9, A4, or custom). Choose an anchor or scale your drawing
to the new size, or *Fit to drawing* to wrap the canvas around your strokes.
Resizing is undoable. The page colour is editable per sketch too.
- 🎨 **Theme-aware pen** — starts white on dark themes and black on light themes
so your strokes are always visible (toggleable in settings).

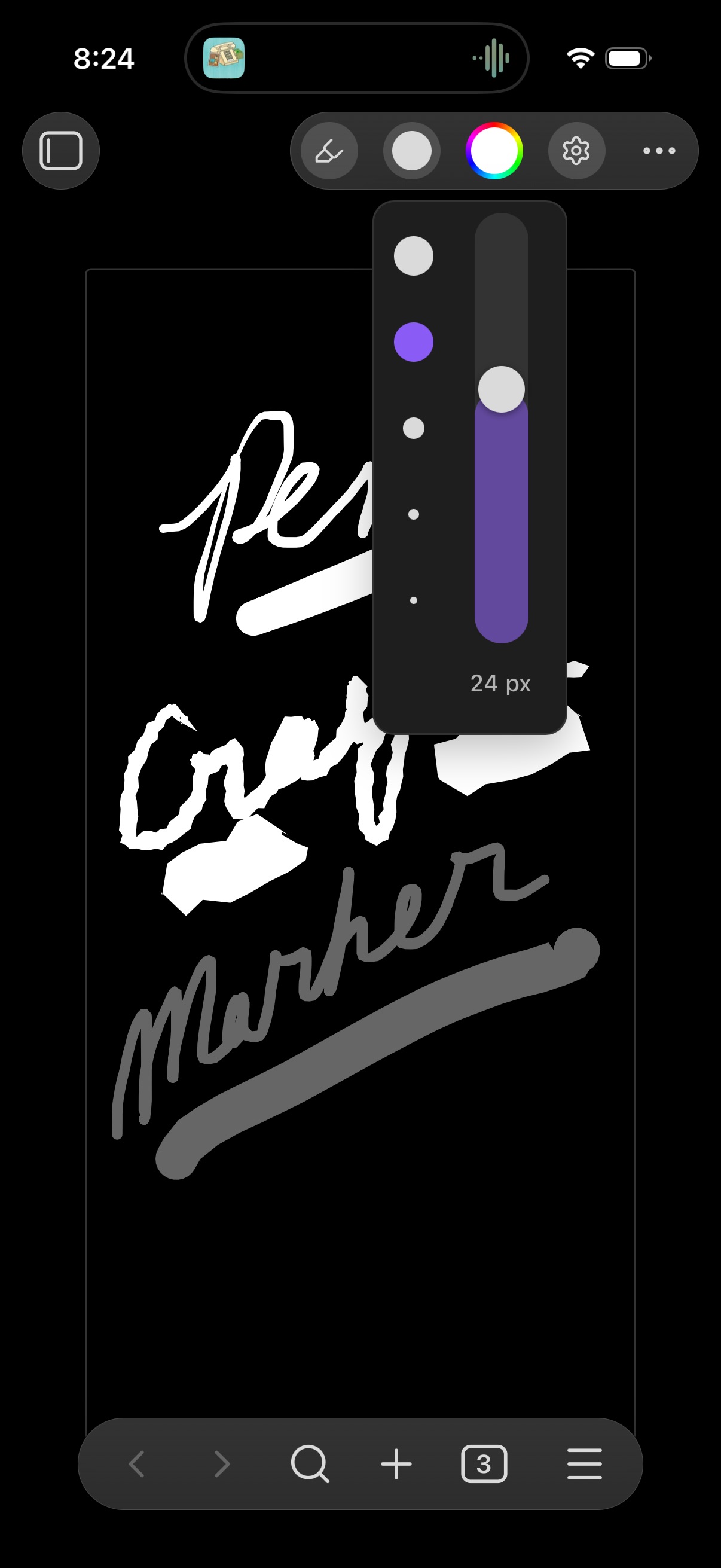

- 🧰 **Tools in one tap** — pen, brush (soft and pressure-led), highlighter, and
erasers for whole objects or just the pixels you touch. Adjustable brush size
with presets, a slider, and a typed-in exact value.

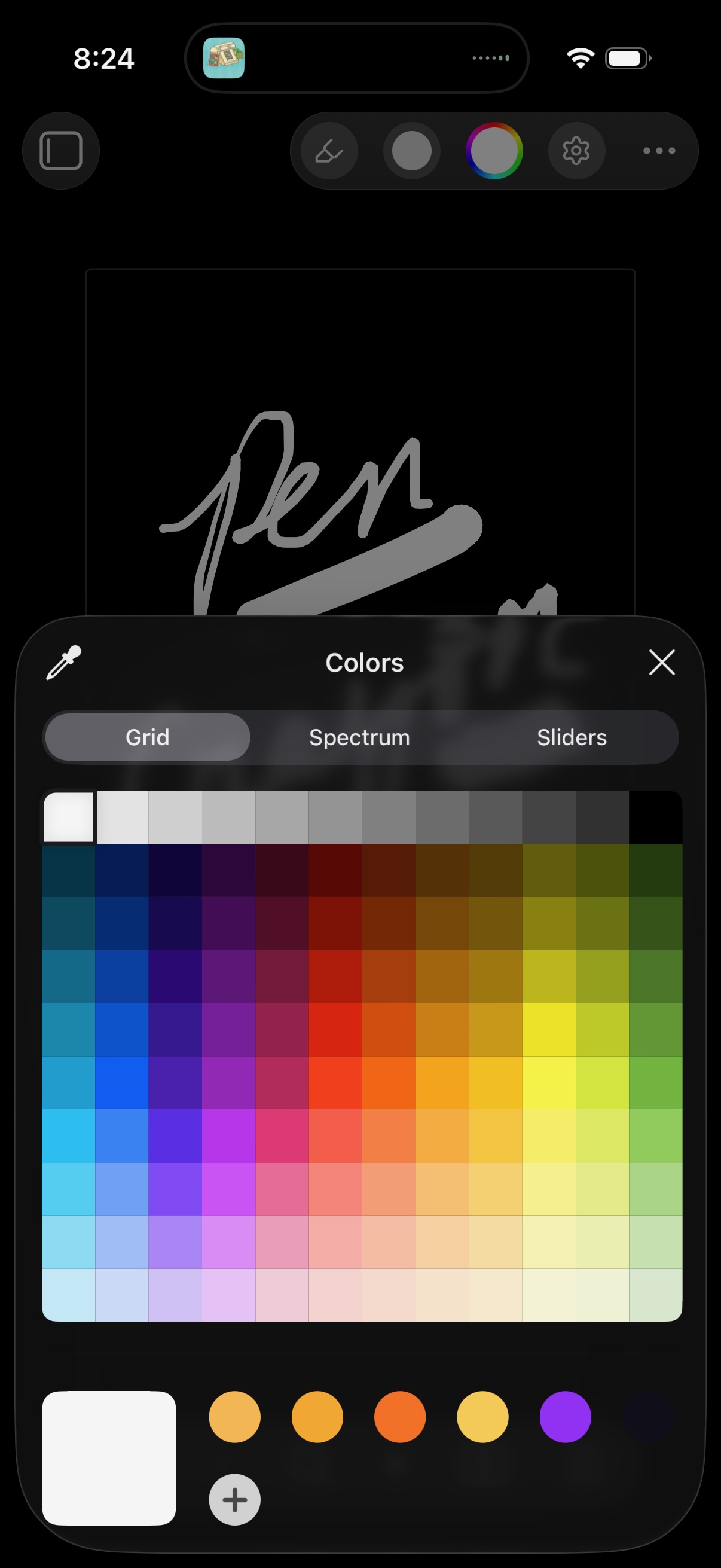

- 🌈 **The system colour picker** — tapping the colour wheel opens iOS's own
Colors sheet, with its spectrum, sliders, eyedropper and swatches. Nothing
half-rebuilt in-plugin to compete with it.
- 👌 **Double-tap gestures** — two fingers to undo, three to redo. Dragging two
fingers still pans and zooms; only taps that stay put count as gestures. Both
actions are in the settings sheet too, so they're never hidden.
- 💾 **Re-editable format** — sketches are saved as `.sketch` files (compact JSON
of strokes) and autosave as you draw. Reopen any sketch and keep drawing.
- 👁️ **Live inline previews** — create a sketch from a note and the canvas renders
right inside the note (no image file), staying in sync as you edit. Prefer a
plain link instead? Flip a toggle in settings.
- 🖼️ **Images on demand** — a PNG is created only when you export. Export asks
whether to **embed it in a note** or **just save the image** to your vault, so
you don't accumulate image files you didn't ask for. SVG export is also
available.

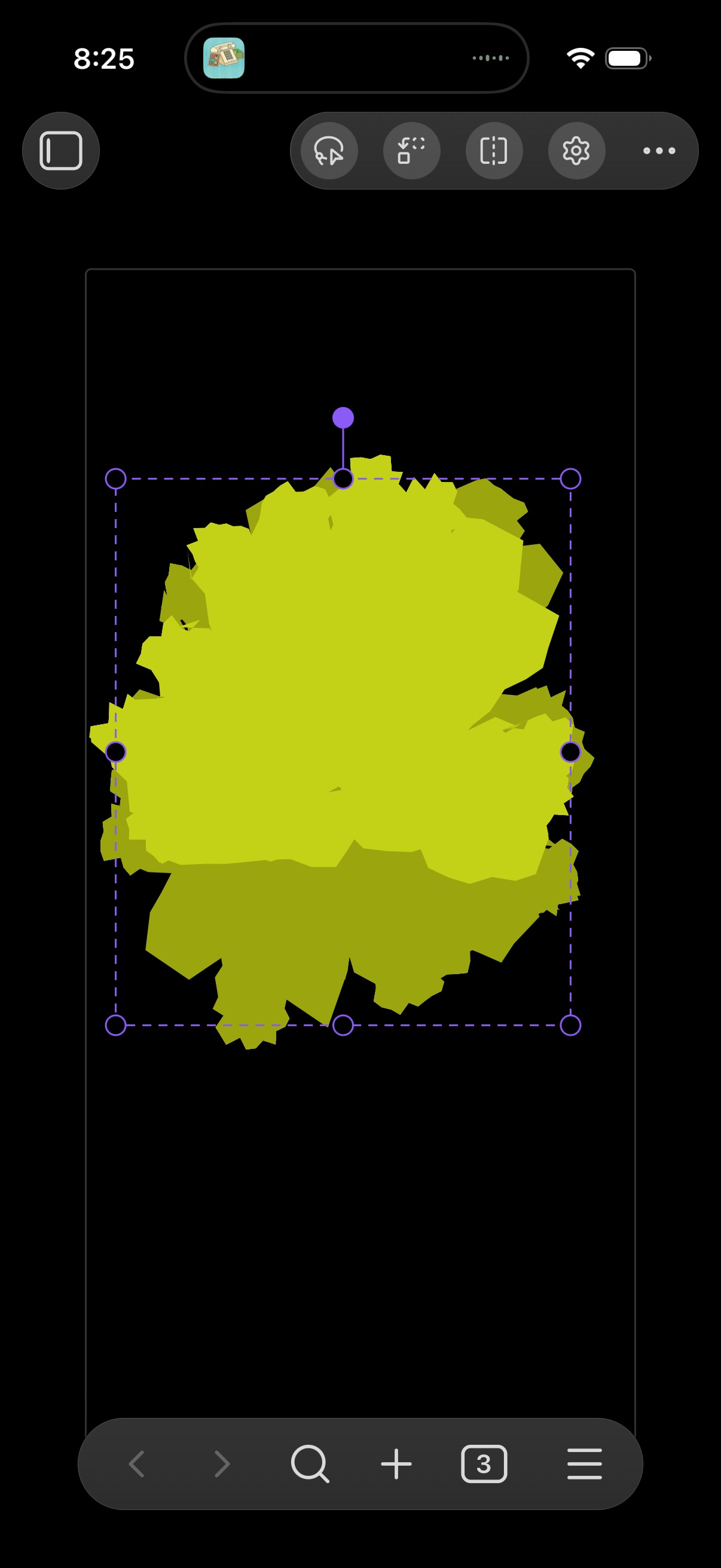

- 🎯 **Selection tool** — lasso a freehand boundary and it snaps closed on lift;
anything inside becomes a scalable, rotatable selection you can move, flip,
copy, cut, paste, or delete. No extra toolbar — size and colour become
selection mode and transform while a selection is active.
- 🧲 **Hold to snap shapes** — pause at the end of a stroke without lifting and a
rough line, circle, rectangle, or triangle becomes a clean one, matching the
orientation and proportions you drew. Off by a setting if you'd rather keep
every line freehand.
## Usage
- **New standalone sketch:** click the brush ribbon icon, or run the command
*"Create new sketch"*. It stands on its own as a `.sketch` file.
- **Sketch inside a note:** run *"Create new sketch in current note"*. This
creates the sketch, inserts a reference to it at your cursor, and opens the
editor. No image file is made — the sketch itself is shown. By default the note
gets a **live inline preview** of the canvas (an `![[Sketch …]]` embed rendered
by the plugin); switch to a plain link in settings (*"Insert sketches into notes
as"*). Either way the sketch remembers which note it came from. Click an inline
preview to open the sketch for editing.
- **Pick a tool:** tap the tool button to choose pen, brush, highlighter, an
eraser — **objects** (removes a whole line) or **pixels** (rubs out just the
part you touch) — or the selection tool.
- **Select, transform, and copy strokes:** with the selection tool, drag a
boundary around what you want — it closes itself when you lift. Drag the box
to move it, or its handles to scale or rotate. The size button becomes
selection mode (Replace / Add / Remove) and the colour button becomes
transform (flip horizontal, flip vertical, rotate 90°); long-press for copy,
cut, paste, and delete.
- **Snap a rough shape:** finish a line, circle, rectangle, or triangle and hold
your finger still for a moment without lifting — it straightens into a clean
version of what you drew. Toggle *"Hold to snap shapes"* in settings to turn
this off.
- **Undo / redo:** double-tap with two fingers to undo, three to redo. Both are
also in the settings sheet.
- **Edit later:** open the `.sketch` file from the file explorer or its link.
- **Zoom, pan & rotate:** pinch with two fingers to zoom, drag to pan, and twist
to rotate the canvas (or scroll-wheel to zoom on desktop). Tap *Fit to screen*
to recenter and straighten the page.
- **Canvas size and colour:** open the settings button to change the page
dimensions or aspect ratio (presets or custom), choose an anchor or scale your
drawing to fit, *Fit to drawing* to wrap the canvas around your strokes, or set
the page colour.
- **Rename:** the filename is hidden to make room for the tools, so rename the
sketch from the settings sheet. Links to it in your notes follow the rename.
- **Save:** sketches autosave — there's nothing to press. Saving never creates an
image; your `.sketch` is the source.
- **Export to an image:** open the settings sheet and choose **PNG**. You're asked
whether to **add it to a note** (embeds `![[…]].png` — defaults to the note the
sketch came from, otherwise pick one) or **just save the image** to your vault.
**SVG** export is there too, as is the *"Export current sketch as SVG"* command.
Settings let you choose the sketch folder, default colour/brush size, toolbar
button size, gestures, palm rejection, default canvas size and background, and
PNG export resolution.
## Installation
### From the community plugins directory (recommended)
1. In Obsidian, open *Settings → Community plugins* and select **Browse**.
2. Search for **Tabula Rasa** and select **Install**, then **Enable**.
### Via BRAT
To track pre-release builds ahead of the community directory, install with
[BRAT](https://github.com/TfTHacker/obsidian42-brat): add the beta plugin
`JeremiahBeatham/TabulaRasa`, then enable **Tabula Rasa** in
*Settings → Community plugins*. BRAT keeps it updated as new releases ship.
### Manual
1. Build the plugin: `npm install && npm run build`.
2. Copy `manifest.json`, `main.js`, and `styles.css` into
`/.obsidian/plugins/tabula-rasa/`.
3. Reload Obsidian and enable **Tabula Rasa** in *Settings → Community plugins*.
To use it on iPhone, sync the plugin folder to your mobile vault (e.g. via
Obsidian Sync or a git client) and enable it there.
## Roadmap
Tabula Rasa is an actively evolving MVP. See **[docs/PHASES.md](docs/PHASES.md)** for the
full shipped feature set. Next up: a text tool, adding images to a sketch, and layers.
## Development
```bash
npm install
npm run dev # watch build
npm run build # type-check + production bundle
```
## License
MIT
