# Clean Mermaid [![English](https://img.shields.io/badge/lang-English-blue)](README.md) [![简体中文](https://img.shields.io/badge/lang-%E7%AE%80%E4%BD%93%E4%B8%AD%E6%96%87-red)](README.zh-CN.md) Clean Mermaid renders every ` ```mermaid ` block in Obsidian as a tidy card: white canvas, soft violet nodes, generous whitespace and a floating toolbar — with **ELK layout**, auto-fit, zoom & pan, fullscreen view, PNG/SVG export and themable colours. ## Features - **Every ` ```mermaid ` block is rendered by this plugin** (reading view and live preview) with a clean card: centred diagram, auto-fit to the editor width, subtle border, floating controls. - **ELK layout engine by default** — bundled `mermaid` 12 already ships ELK, so complex flowcharts get the nicer layered layout. Switch to Dagre globally or per diagram when you prefer it. - **Auto-fit & centre** — diagrams scale with the pane width and are capped to a share of the viewport height, so a huge diagram never takes over the note. - **Zoom & pan** — `Ctrl/Cmd + scroll` zooms around the pointer (10 %–800 %), drag to pan a zoomed-in diagram, double-click to reset. Plain scrolling still scrolls the note. - **Image preview** — diagrams are displayed as `` (SVG data URL), so Obsidian themes and CSS snippets cannot restyle them; what you see is what you export. - **Export** — download a 2× PNG, an SVG, or copy the image / the Mermaid source from the `⋯` menu. - **Fullscreen viewer** (`⤢`) — opens sized to the diagram at 100 % (capped by the viewport) and is drag-resizable from any edge or corner; pan, wheel/pinch zoom, fit, export. - **4 built-in themes** — Clean Light, Clean Dark, Neutral, GitHub Light — plus **custom themes** as plain Mermaid `themeVariables` JSON, with validation. - **Light/dark aware** — follows the Obsidian appearance automatically and re-renders on switch. - **UI language** — the card toolbar, the `⋯` menu, the error card, the fullscreen viewer and every notice follow 中文 / English, or Obsidian's own interface language when set to "Auto". - **Per-diagram directives** — `%% cm:theme=... %%`, `%% cm:layout=dagre %%`, `%% cm:plain %%`. ## Rendering comparison Every pair below is the same diagram source. **Left** is this plugin with its factory defaults (ELK layout, Clean Light theme, card). **Right** is Obsidian's own renderer — the mermaid 11.13.0 build shipped inside Obsidian 1.14.4, initialised with Obsidian's own arguments (mermaid's default theme, no `layout` key, so Dagre). Both sides are displayed at the same width; the plugin auto-fits while Obsidian pins flowcharts to the reading-column width, so absolute pixel size is not part of the claim. Both sets come from `tests/browser/capture-diagrams.ts` — one structure, two sets of labels — and are produced by `npm run shots` at **v0.1.6** (4 diagrams × 2 languages × 2 sides = 16 PNGs). This page shows the English set (filenames carry `-en-`); the Chinese README uses the `-zh-` set, and only the labels differ. Whenever rendering changes, both languages must be re-run together. Nothing here is hand-edited or retouched. ### Flowchart — layout engine | Clean Mermaid (ELK) | Obsidian native (Dagre) | | --- | --- | | Build-pipeline flowchart rendered by Clean Mermaid with ELK: orthogonal edges routed around the canvas, evenly sized nodes

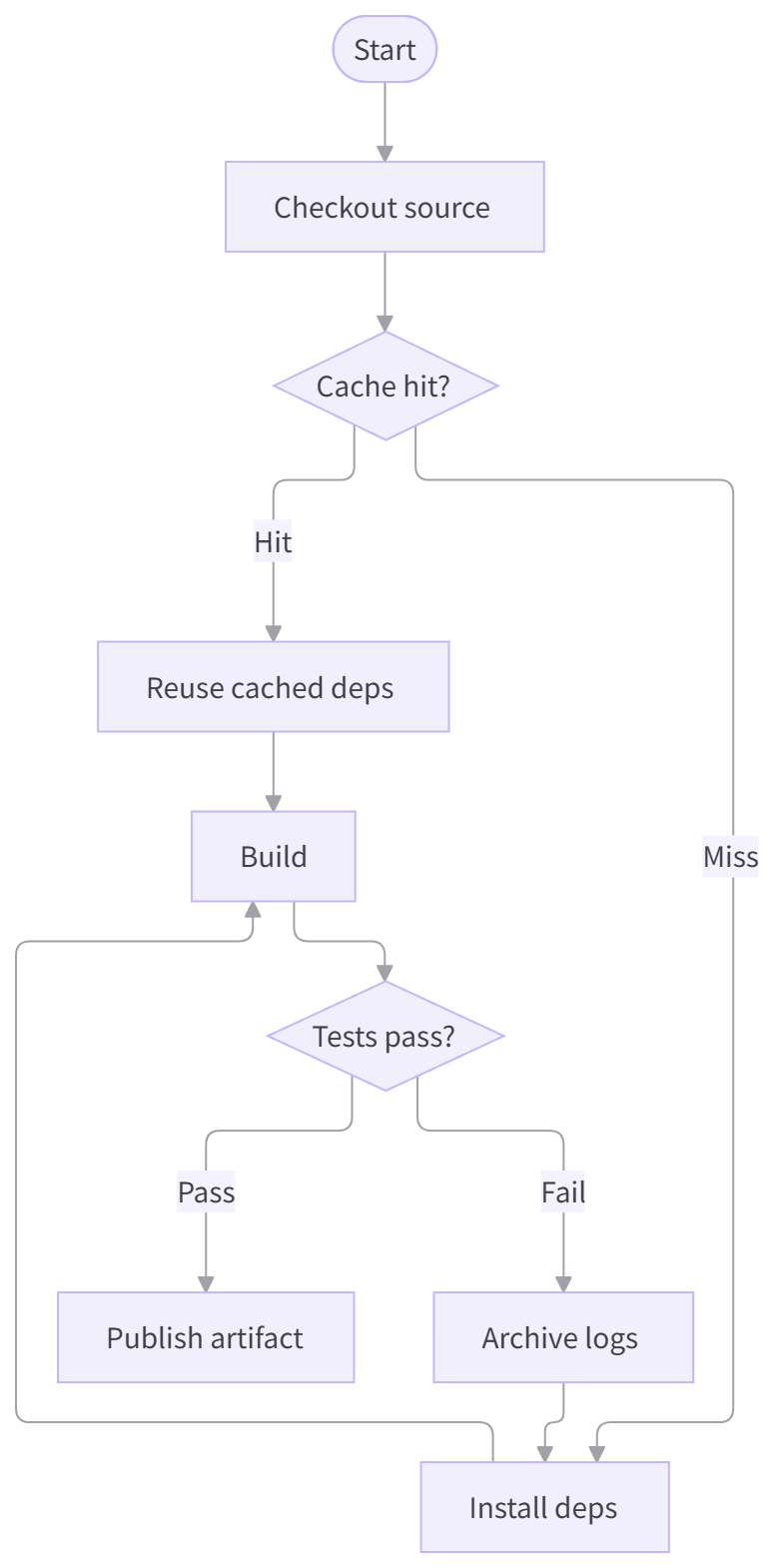

Build-pipeline flowchart rendered by Clean Mermaid with ELK: orthogonal edges routed around the canvas, evenly sized nodes

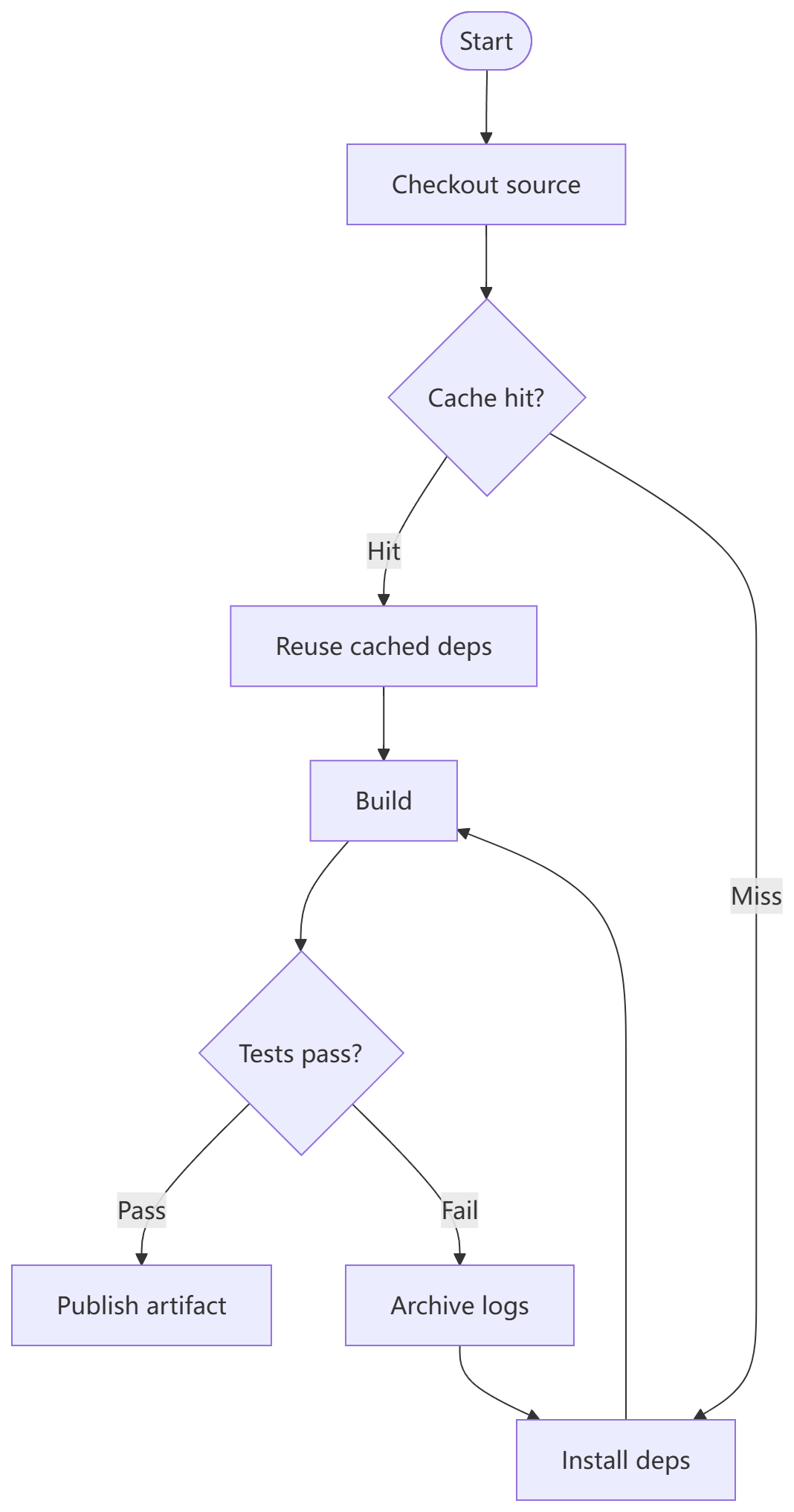

The same flowchart rendered by Obsidian's built-in Mermaid with Dagre: curved edges, tighter columns

| ### State diagram — spacing and edge routing | Clean Mermaid (ELK) | Obsidian native (Dagre) | | --- | --- | | Order state diagram rendered by Clean Mermaid: self-loop and transition labels kept inside the canvas

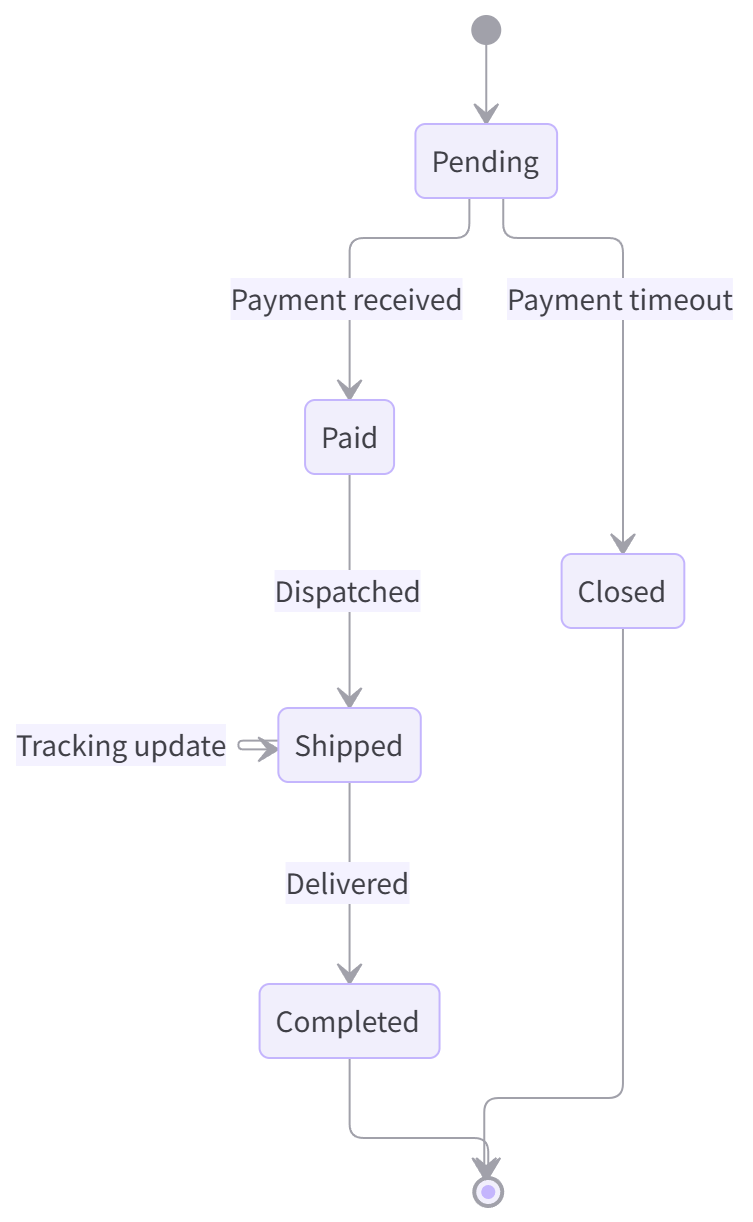

Order state diagram rendered by Clean Mermaid: self-loop and transition labels kept inside the canvas

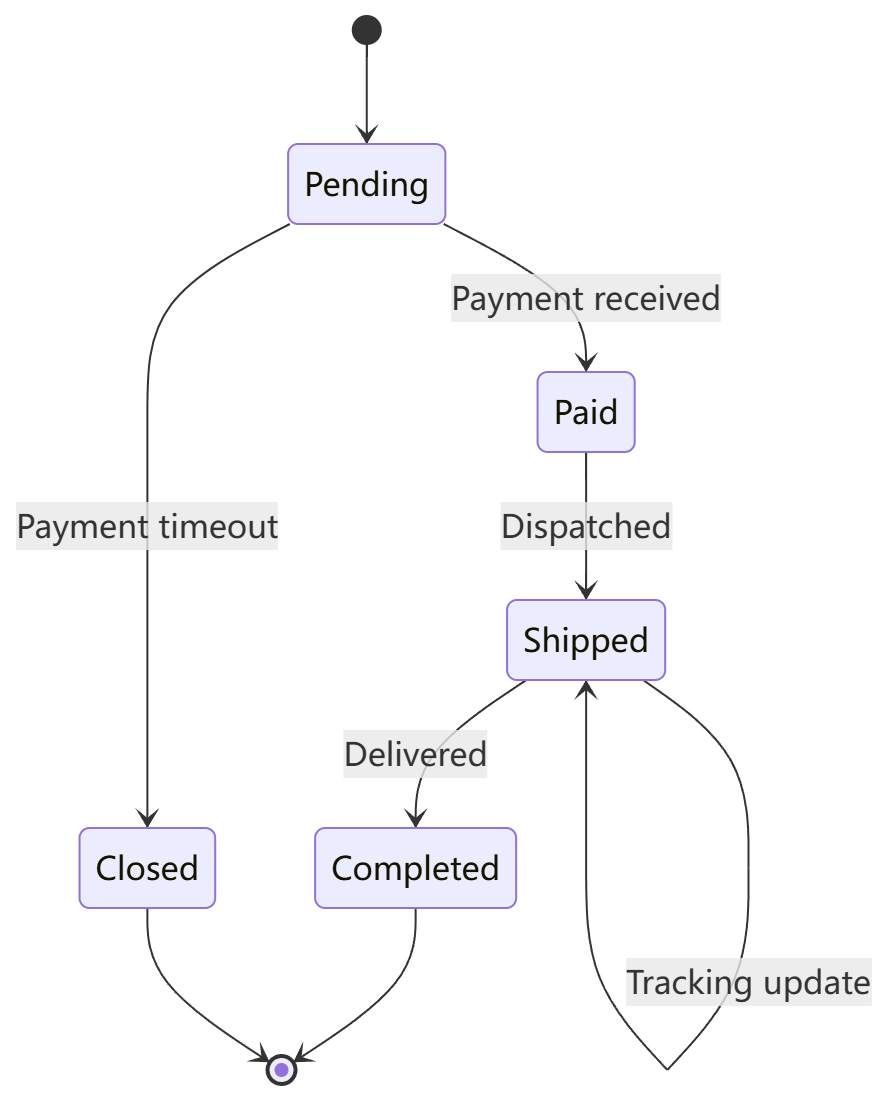

The same state diagram rendered by Obsidian's built-in Mermaid: curved edges, one label overflows the canvas

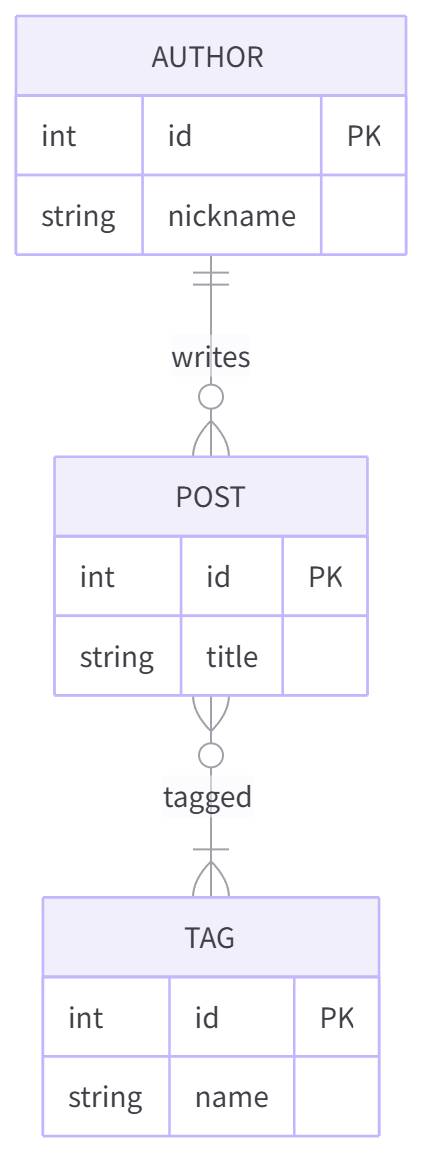

| ### ER diagram — entity boxes | Clean Mermaid (ELK) | Obsidian native (Dagre) | | --- | --- | | Three-table ER diagram rendered by Clean Mermaid

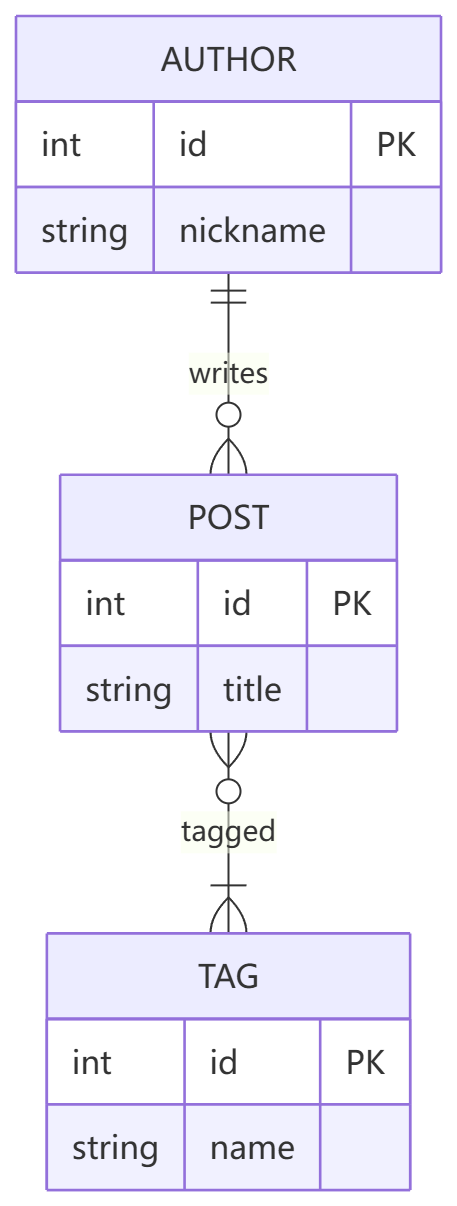

The same ER diagram rendered by Obsidian's built-in Mermaid

| ### Sequence diagram — colours only ELK does not drive sequence diagrams, so the layout is identical on both sides; only the theme and typography differ. Kept here so the comparison does not overstate what the layout engine changes. | Clean Mermaid | Obsidian native | | --- | --- | | Login sequence diagram rendered by Clean Mermaid

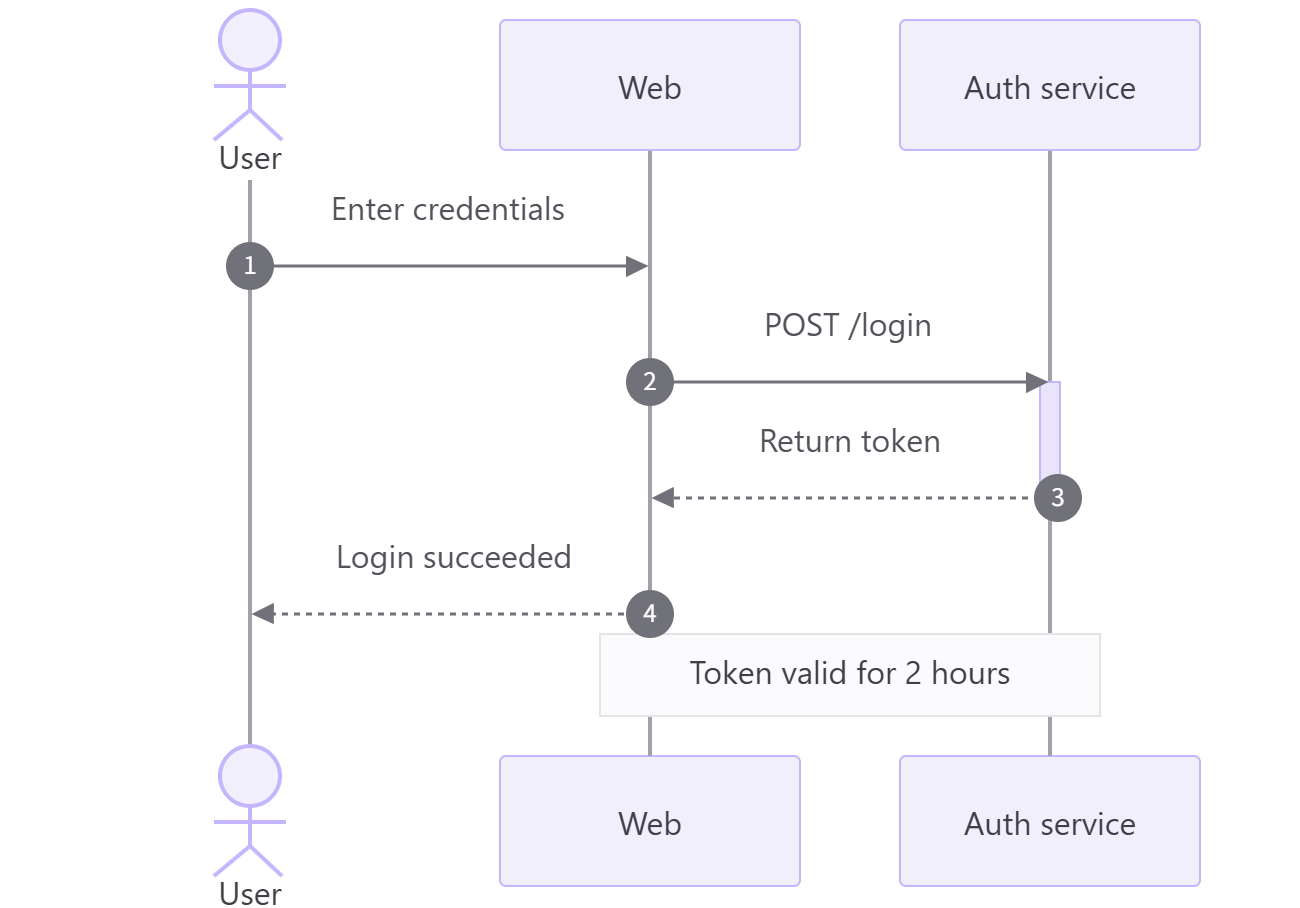

Login sequence diagram rendered by Clean Mermaid

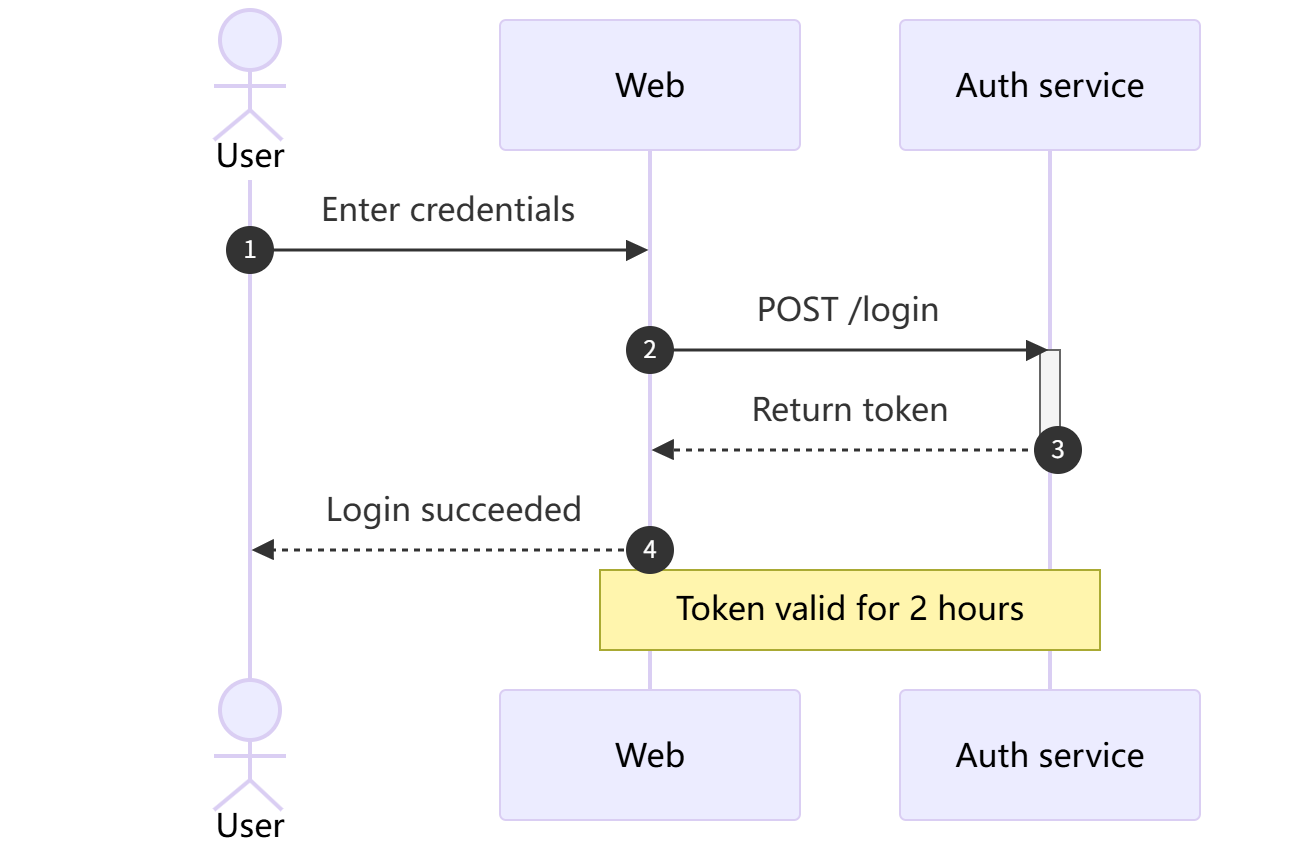

The same sequence diagram rendered by Obsidian's built-in Mermaid

| ## Installation ### Manual 1. Download `main.js`, `manifest.json` and `styles.css` from the latest release. 2. Put them into `/.obsidian/plugins/clean-mermaid/`. 3. Enable **Clean Mermaid** in *Settings → Community plugins*. ### From source ```bash npm install npm run build npm run deploy -- ``` ## Usage Write Mermaid as usual: ````markdown ```mermaid flowchart TD A[Start] --> B{Check} B -->|yes| C[Ship it] B -->|no| D[Fix it] ``` ```` ### Interactions | Action | Gesture | | --- | --- | | Zoom | `Ctrl`/`Cmd` + scroll (inline), wheel or pinch (fullscreen) | | Pan | Drag with the left mouse button (when zoomed in) | | Reset to auto-fit | Double-click, or `Reset zoom` in the `⋯` menu | | Menu | `⋯` in the card corner — PNG, SVG, copy image, copy source, reset | | Fullscreen | `⤢` in the card corner | ### Directives Directives must be the first lines of the block and are stripped before rendering: ````markdown ```mermaid %% cm:theme=neutral %% %% cm:layout=dagre %% flowchart LR A --> B ``` ```` | Directive | Effect | | --- | --- | | `%% cm:theme= %%` | Use a built-in or custom theme for this diagram only | | `%% cm:layout=elk\|dagre %%` | Override the layout engine for this diagram only | | `%% cm:plain %%` | Render this diagram with mermaid's stock look (no card, no toolbar) | Your own `%%{init: ...}%%` directive always wins over what the plugin injects — the plugin prepends its configuration, so the values you write later take precedence. For instance the plugin injects `look: "classic"` (flat nodes, no drop shadow) and lifts mermaid's 120px node width defaults; put `%%{init: {"look":"neo"}}%%` in a block to bring the shadows back for it. One thing is not an injected value: the plugin draws decision nodes (`A{...}`) as a diamond sized to their label. mermaid's own diamond is always a **square** whose side is the label's width plus its height, so a single short line of text ends up surrounded by a lot of empty space. Switch *Settings → Rendering → Decision node shape* back to "mermaid square" if you want the stock geometry; `%% cm:plain %%` blocks always use it. Because this is geometry rather than configuration, `%%{init: ...}%%` cannot toggle it per block. ## Settings | Group | Options | | --- | --- | | *(no heading, at the top)* | Plugin interface language (card toolbar, `⋯` menu, error card, viewer, notices): follow Obsidian automatically, 中文 or English | | Appearance | Light/dark theme, follow Obsidian appearance, fixed theme | | Layout | Layout engine (ELK/Dagre), ELK `mergeEdges`, ELK `nodePlacementStrategy`, auto-fit mode, max upscale, max height | | Interaction | Ctrl/Cmd + scroll zoom, drag to pan, toolbar visibility, double-click reset | | Rendering | Enable Clean Mermaid rendering, render as image, `%% cm: %%` directives, decision node shape (compact diamond / mermaid square) | | Export | PNG resolution (1×/2×/3×), PNG background (theme/transparent) | | Custom themes | Add, edit (JSON), delete; invalid JSON is rejected and the last valid version stays | ## Notes & compatibility - **Bundled runtime.** The plugin ships its own `mermaid` 12 build (including ELK), so it does not depend on the Mermaid version bundled with Obsidian. This makes `main.js` larger than a typical plugin (a few MB) — that is the price for a predictable, standalone renderer. - **How the takeover works.** Reading view uses the standard `mermaid` code block processor (registered ahead of Obsidian's own). Live preview is a special case: Obsidian renders mermaid there with a hard-coded core renderer that ignores that registry, so the plugin watches the rendered widget, reads the diagram source from the editor state and swaps the output for its own card. Obsidian's per-vault “trust mermaid” prompt is respected in both views. - **Layout engine.** ELK affects diagrams with pluggable layouts (flowchart, state, class, ER, …). Sequence, pie, gantt and similar diagrams use their own layout and are unaffected. - **Other mermaid plugins.** Only enable **one** plugin that takes over ` ```mermaid ` blocks. If another renderer is detected, Clean Mermaid shows a one-time notice. - **Desktop only.** `manifest.json` declares `isDesktopOnly`, so Obsidian mobile does not load the plugin; exports always use the browser download. - **Tested Obsidian version.** `minAppVersion` is `1.14.4` — the only build this takeover has been verified against. Live preview relies on undocumented Obsidian selectors and hooks, so older builds are not promised to work; see [docs/obsidian-internals.md](docs/obsidian-internals.md). - **Disabling** the plugin restores Obsidian's own Mermaid rendering. Nothing is patched globally; to size decision nodes to their label the plugin changes the diamond drawing inside **its own bundled copy** of mermaid, and Obsidian's own Mermaid renderer is untouched. ## Development ``` src/ main.ts plugin entry: processor registration, live preview extension, commands block.ts one rendered diagram: card DOM, interactions, exports directives.ts %% cm: %% per-diagram directive parsing (pure, unit-tested) decision-shape.ts decision node diamond geometry (pure, unit-tested) livepreview.ts live preview takeover of Obsidian's rendered mermaid widgets mermaid-runtime.ts bundled mermaid + config injection + LRU cache themes.ts built-in themes, custom theme parsing/resolution fit.ts pure auto-fit math viewer.ts fullscreen pan/zoom modal, sized to the diagram and drag-resizable export.ts PNG/SVG/clipboard export helpers i18n.ts language detection + the bilingual picker used by every label settings.ts settings model + settings tab tests/ vitest unit tests for the pure modules, plus tests/browser/ harnesses ``` ```bash npm install # install dependencies npm run dev # esbuild watch build npm run build # type-check + production build (main.js) npm test # unit tests (no Obsidian needed) npm run test:browser # browser harnesses for real mermaid rendering npm run deploy -- # tests → build → copy the build into a vault you name ``` See [CONTRIBUTING.md](CONTRIBUTING.md) for conventions and the manual acceptance checklist. No local vault paths are ever committed — the deploy script resolves the vault name through Obsidian's own registry (a full path works too, for a vault you have not opened in Obsidian yet). ## License [MIT](LICENSE) © Clean Mermaid contributors `main.js` bundles mermaid and its dependencies — their licences are listed in [THIRD-PARTY-LICENSES.md](THIRD-PARTY-LICENSES.md). --- 中文文档：[README.zh-CN.md](README.zh-CN.md) · 贡献指南：[CONTRIBUTING.zh-CN.md](CONTRIBUTING.zh-CN.md)
