# PUML Viewer for Obsidian

A plugin for Obsidian that renders PlantUML/Mermaid from diagram files and from markdown code blocks.

## Features

- Custom diagram file view (`.puml`, `.mermaid`, `.mmd`, `.marmaid`) with two modes:
  - `View` (diagram)
  - `Edit` (source code with line numbers)
- Diagram toolbar actions:
  - refresh
  - zoom in / reset / zoom out
  - export buttons (SVG icons) to save as:
    - `.png`
    - `.svg`
    - `.txt` (ASCII Art)
- Drag-to-pan in diagram view when content is scrollable
- Auto-fit diagram to viewer width on render
- Auto-refresh on source file change
- Startup recovery: reopen and render previously opened diagram file after Obsidian restart
- Markdown embedded rendering for fenced blocks:
  - ` ```plantuml `
  - ` ```mermaid `
  - switch between `View Code` and diagram
  - `Zoom` overlay with drag-to-pan and zoom controls
  - save diagram with format chooser (`Save as PNG` / `Save as SVG`)
  - optional width hint in fence: ` ```plantuml |500 `
  - width hint limits only diagram area; code view uses full available block width
- PlantUML code coloring in embedded `View Code` mode
- Works with:
  - PlantUML server
  - Kroki (`https://kroki.io`)
  - Local server (for example `http://localhost:8000`)
- Supports both `SVG` and `PNG`

## Build

```bash
npm install
npm run build
```

## Install into Obsidian

Copy these files into:

```text
<YourVault>/.obsidian/plugins/puml-viewer/
```

Files:
- `main.js`
- `manifest.json`
- `styles.css`
- `versions.json`

Then enable the plugin in **Settings → Community plugins**.

## Usage

### Open diagram files

- Open a supported diagram file (`.puml`, `.mermaid`, `.mmd`, `.marmaid`) and run command:
  - `Open current diagram file in viewer`
- Switch between `View` and `Edit` modes in the toolbar.

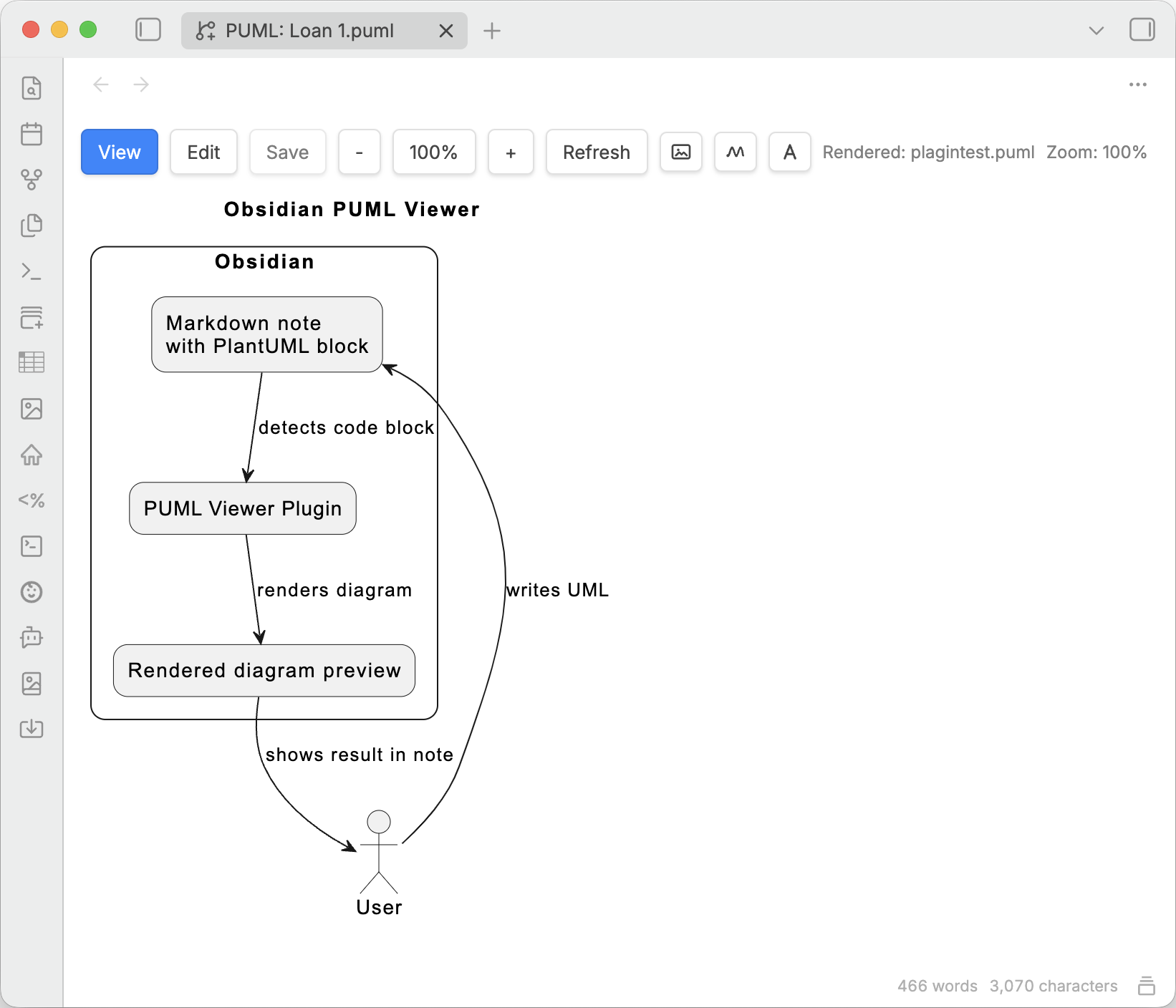

The dedicated viewer gives you a diagram-first workspace for standalone files, with quick switching back to the editable source when you need to adjust the markup.

<img src="assets/screenshots/puml_01.png" width="900" alt="PUML file opened in Obsidian viewer" />

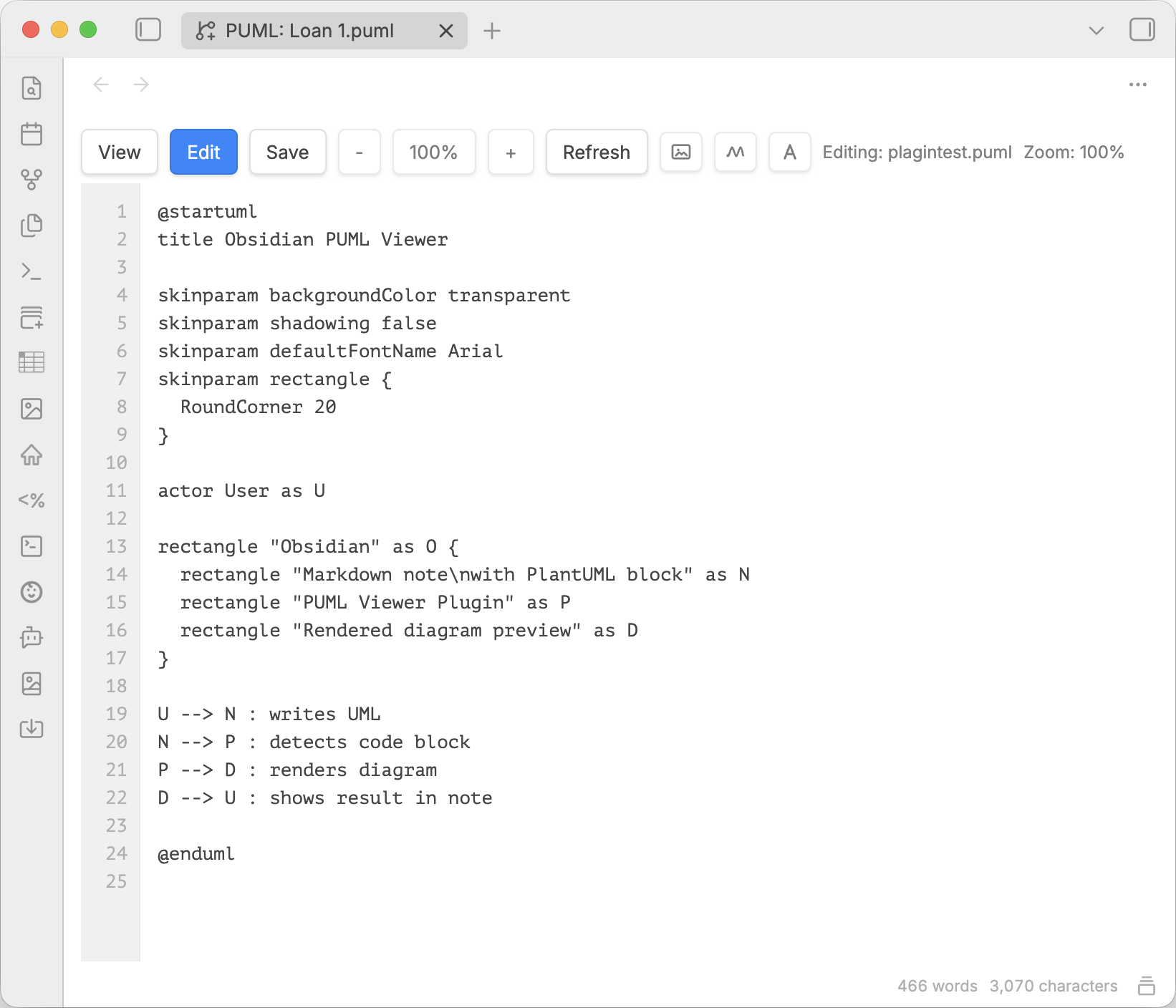

Source editing stays in the same view, so you can iterate on PlantUML without leaving the file context.

<img src="assets/screenshots/puml_02.png" width="900" alt="PUML source code editor inside Obsidian" />

### Markdown blocks

Basic block:

~~~md
```plantuml
@startuml
Bob -> Alice: hello
@enduml
```
~~~

Mermaid block:

~~~md
```mermaid
flowchart LR
  A --> B
```
~~~

Block with width hint:

~~~md
```plantuml |500
@startuml
Bob -> Alice: hello
@enduml
```
~~~

- `|500` means max diagram block width in pixels.
- In rendered block, use:
  - `View Code` to toggle source/diagram
  - `Zoom` to open fullscreen overlay
  - save icon to choose `PNG` or `SVG`

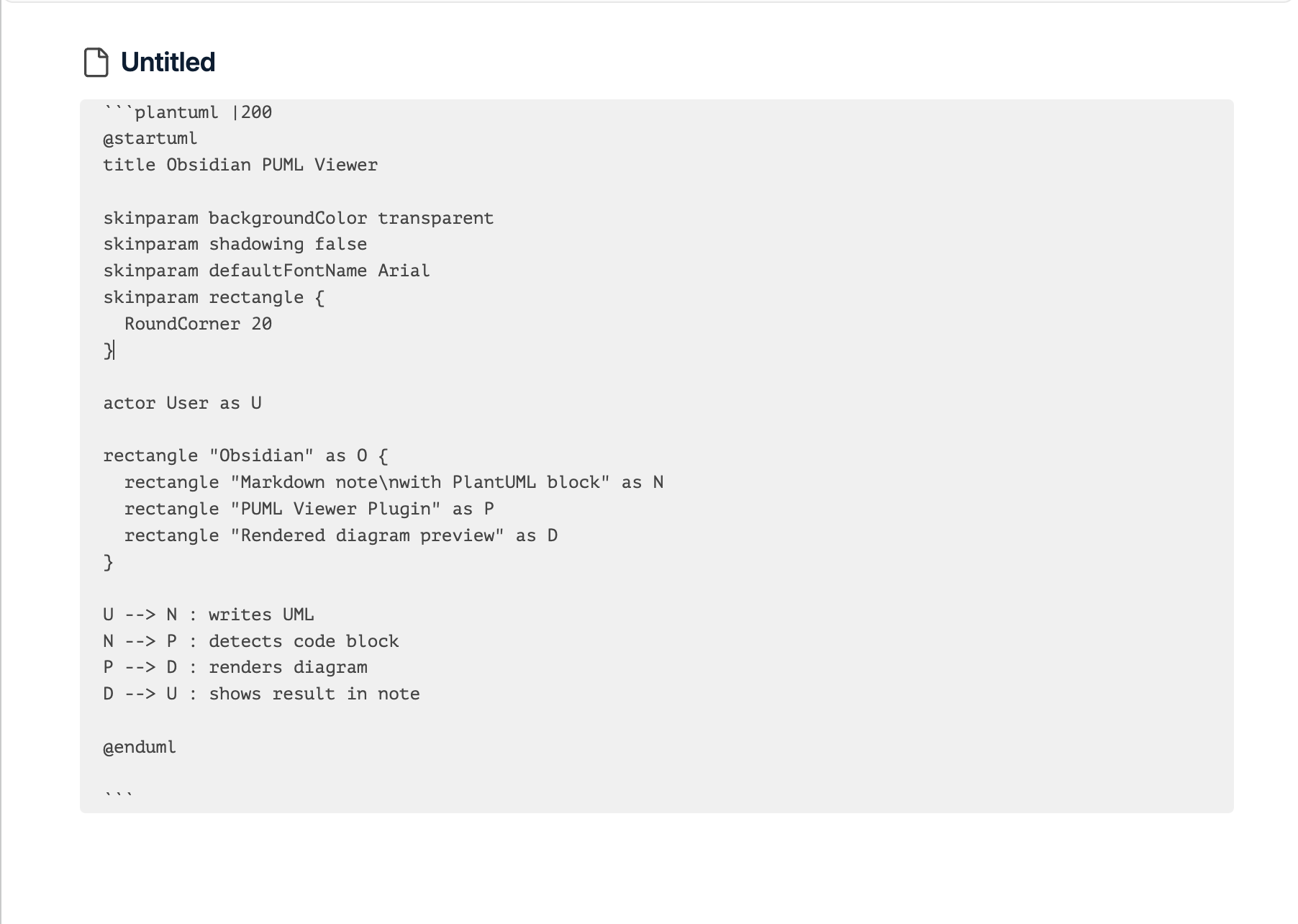

Rendered markdown blocks stay inside the note preview, which makes them usable for documentation, specs, and presentation notes without opening a separate file.

<img src="assets/screenshots/puml_03.png" width="900" alt="Rendered PlantUML markdown block in note preview" />

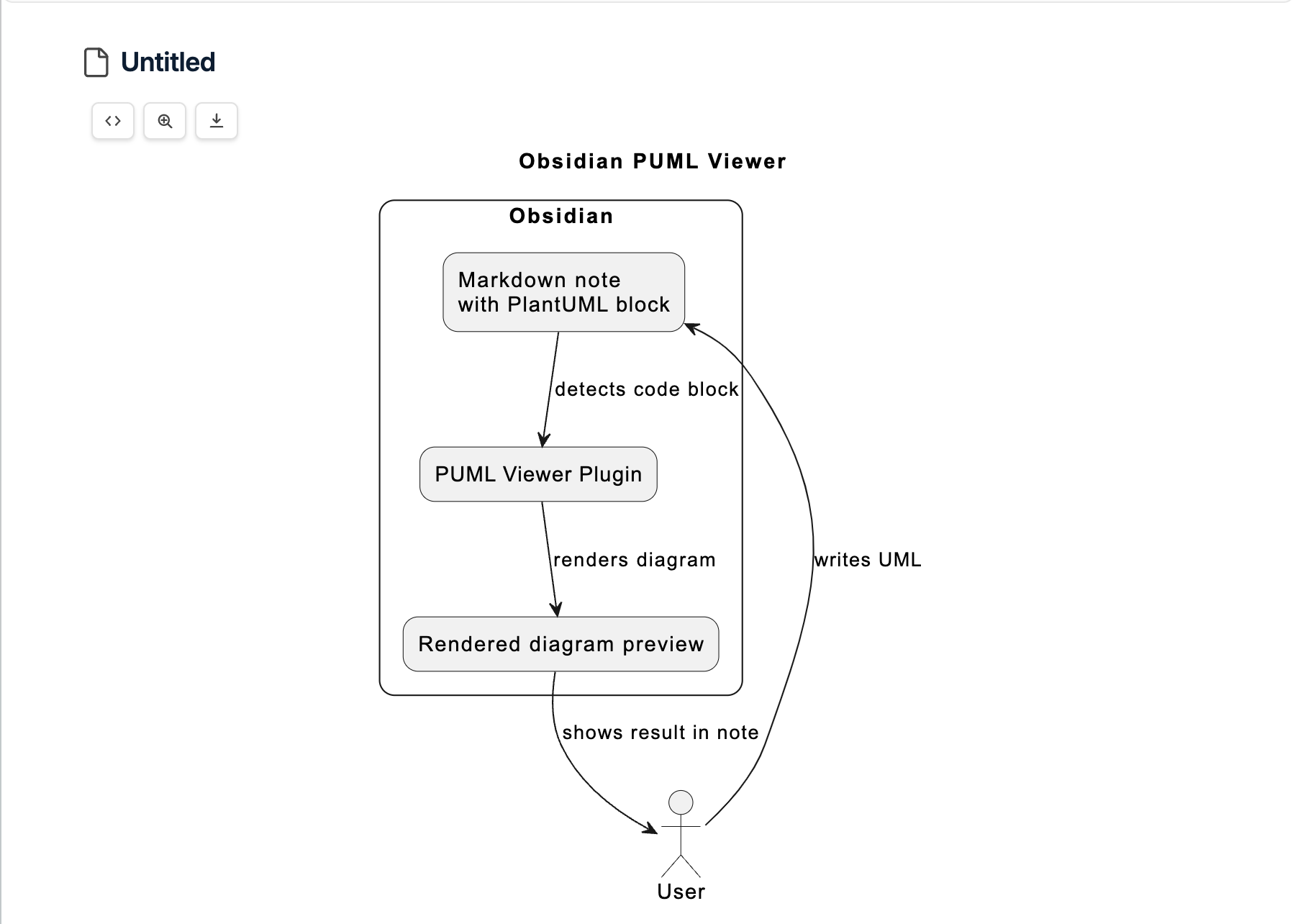

For larger diagrams, the fullscreen zoom overlay adds navigation controls and drag-to-pan, so dense schemes remain readable.

<img src="assets/screenshots/puml_04.png" width="900" alt="Fullscreen zoom overlay for PlantUML diagram" />

Export actions are available directly from the rendered block when you need to reuse the diagram outside Obsidian.

<img src="assets/screenshots/puml_05.png" width="900" alt="Diagram export options in markdown block" />

## Settings

- `Server type`: `PlantUML` / `Kroki` / `Local`
- Separate URLs:
  - `PlantUML URL` (example: `https://www.plantuml.com/plantuml`)
  - `Kroki URL` (example: `https://kroki.io`)
  - `Local URL` (example: `http://localhost:8000`)
- `Kroki diagram type`: `PlantUML` / `Mermaid`
  - Used as default for Kroki requests when diagram type is not explicitly implied by code block language.
- `Image format`: default render format for viewer (`SVG` or `PNG`)
- `Embedded block default view`: show diagram or code first
- `Embedded diagram alignment`: `left` / `center` / `right` (default `center`)
  - Applied immediately in markdown preview without Obsidian restart

## Disclosures

- **Network usage**: plugin sends diagram source to the configured render server
  (`PlantUML`, `Kroki`, or `Local`) to generate SVG/PNG/TXT output.
- **Accounts / payments**: not required.
- **Telemetry / ads**: none.
- **External file access**: none outside Obsidian vault APIs.
