**Tasks Map** is a minimal Obsidian plugin that visualizes your `- [ ] tasks` as an interactive graph. Each task is represented as a node, with edges showing relationships based on special emoji/link syntax in your task text as implemented in the popular Tasks plugin.
## Pre-requisites
- **Required:** You must have both the [Dataview](https://github.com/blacksmithgu/obsidian-dataview) plugin and the [Tasks](https://github.com/obsidian-tasks-group/obsidian-tasks) plugin installed and enabled in your vault.
## Features
- **Graph Visualization:** See all your Dataview tasks as draggable nodes in a React Flow graph.
- **Custom Nodes:** Each node displays task summary, tags, priority emoji, and completion status (color-coded).
- **Task Relationships:** Edges are created based on special emoji/link syntax (🆔 for outgoing, ⛔ for incoming, with hashes).
- **Edge Management:** Select and delete edges (removes the hash from both tasks/files).
- **Tag Filtering:** Filter visible tasks by tag using a multi-select dropdown overlay.
- **Quick Navigation:** Open the linked file for any task directly from the node.
- **Task Completion:** Mark tasks as completed/incomplete directly from the graph.
- **UI Overlays:** Modern overlays for tag filtering and reloading tasks.
- **Priority & Emoji Support:** Priority emoji (🔺, ⏫, 🔼, 🔽, ⏬) and robust emoji rendering.
- **Automatic Layout:** Uses dagre for clean, readable graph layouts.

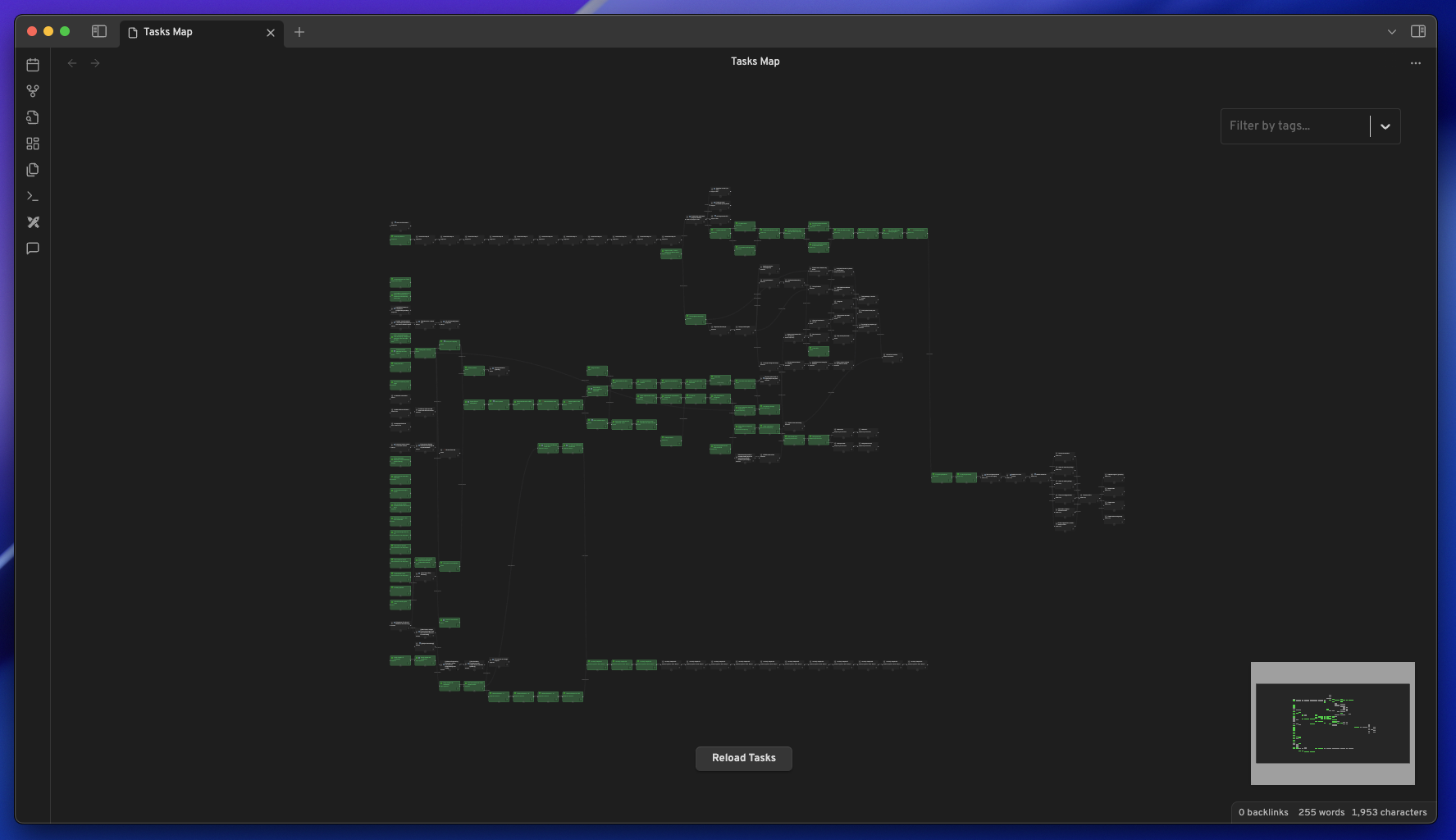

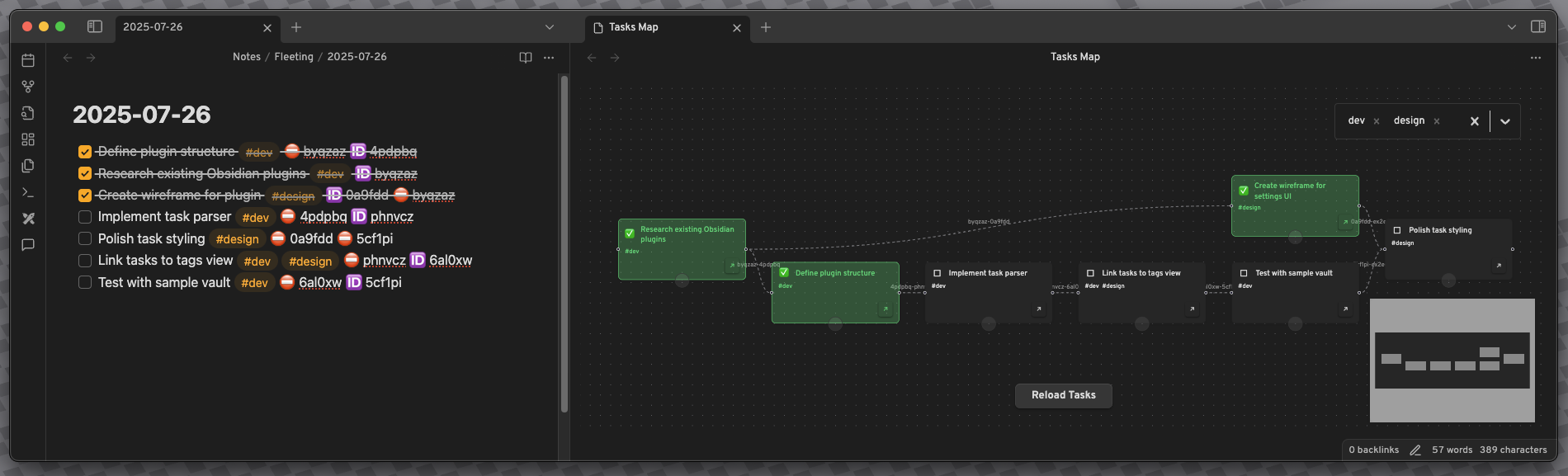

### Examples
## Installation
Install through the Obsidian plugin manager: https://obsidian.md/plugins?id=tasks-map
### Local installation
1. **Clone or Download:** Place the plugin folder in your vault's `.obsidian/plugins/tasks-map/` directory.
2. **Install Dependencies:**
```sh
npm install
```
3. **Build the Plugin:**
```sh
npm run build
```
4. **Enable in Obsidian:**
- Open Obsidian settings → Community plugins → Enable "Tasks Map".
## Usage
- Open the "Tasks Map" view from the ribbon or command palette.
- Drag nodes to rearrange tasks visually.
- Click the checkmark to mark a task as completed/incomplete.
- Click the link icon to open the task's file.
- Select and delete edges to remove task relationships.
- Use the tag filter overlay to focus your view.
## Development
- **Dev Mode:**
```sh
npm run dev
```
- **Build:**
```sh
npm run build
```
- **Lint:**
```sh
npm run lint
```
## Contributing
Pull requests and suggestions are welcome! Please open an issue or PR on GitHub.
## License
MIT
## API Documentation
See [Obsidian API Docs](https://github.com/obsidianmd/obsidian-api)
